| Capillary Length | : | 42 in |
| Configuration | : | SPST |
| Contact Rating | : | 20 A Full Load, 80 A Locked Rotor at 120/240 VAC, 16 A Full Load, 60 A Locked Rotor at 277 VAC, 16 A at 277 VAC Resistive Load |
| Differential Temperature | : | 14 deg F |
| Series | : | A30 |
| Temperature Settings | : | -22 to 23 deg F |
| Voltage Rating | : | 120/240/277 VAC |

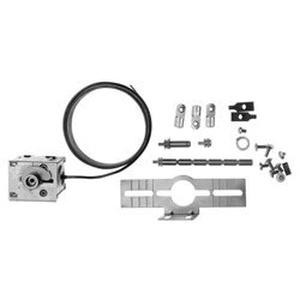

Robertshaw® Cold Control, Series: A30, 120/240/277 VAC, Configuration: SPST, 42 in Capillary Length, 20 A Full Load, 80 A Locked Rotor at 120/240 VAC, 16 A Full Load, 60 A Locked Rotor at 277 VAC, 16 A at 277 VAC Resistive Load Contact, 14 deg F Differential, Temperature Settings: -22 to 23 deg F
- Laser welded stainless steel bellows
- High-amperage contacts
- Pneumatic action provided by vapor-filled capillary or capillary with bulb sensing elements
- Constant on or off positions available
- Standard 1/4 in quick connect terminals with optional screw terminals
- Designed to switch electrical components in response to sensed temperatures
- Normal off at -14 deg F, normal on at 0 deg F, warm on at 23 deg F, cold off at -22 deg F
