| Additional Information | : | 1-Stage, 22 AWG Wire Gauge |
| Differential Temperature | : | 1 to 30 deg F |
| Dimensions | : | 1/4 in Dia x 2 in L |
| Enclosure Type | : | NEMA 1, IP67 |
| Operating Temperature | : | -30 to 220 deg F |
| Series | : | ETC Series |
| Voltage Rating | : | 24 VAC |
The Ranco® ETC Series electronic temperature control offers a full featured electronic replacement for electrical mechanical temperature controls used in many commercial refrigeration applications. With its wide temperature range, one and two-stage capability, selectable heating/cooling modes and multi-voltage input, the ETC is designed to provide application flexibility. Models available include 120/208/240 VAC and 24 VAC.
Robertshaw® Electronic Temperature Control, ETC Series, 24 VAC, 1 to 30 deg F Differential Temperature, NEMA 1, IP67 Enclosure, -30 to 220 deg F Operating Temperature, 1/4 in Dia x 2 in L, Additional Information: 1-Stage, 22 AWG Wire Gauge
- Anti-short cycle compressor delay for cooling applications
- LCD read out for sensor temperature, control settings and relay status
- EEPROM memory retains control settings during power outages
- Keypad lockout to prevent end user alteration of settings

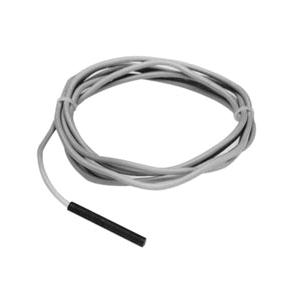

- 8 ft lead with sensor is extendable up to 400 ft using 18 or 22 ga thermostat wire
- Easy four-step set-up
- Heavy-duty relay is 1 hp rated
- Selectable deg F or deg C heating/cooling modes
- Single and two-stage models
- NEMA 1 case and cover
- White backlight on display
- Sensor-rated IP67 for dust and water (less than 1 m) resistance
