| Amperage Rating | : | 13 A |
| Control Type | : | Double Throw Reversible |
| Frequency Rating | : | 50 Hz, 60 Hz |
| HP Rating | : | 1/2 hp |
| Housing Material | : | Cast Aluminum |
| Number of Speeds | : | 1 |
| Overall Length | : | 28-1/4 in |
| Overall Width | : | 6-1/2 in |
| Pipe Capacity | : | 1/8 to 2 in Pipe, 1/4 to 1 in Rod |
| Speed Rating | : | 26 to 30 rpm |
| Voltage Rating | : | 115 V |

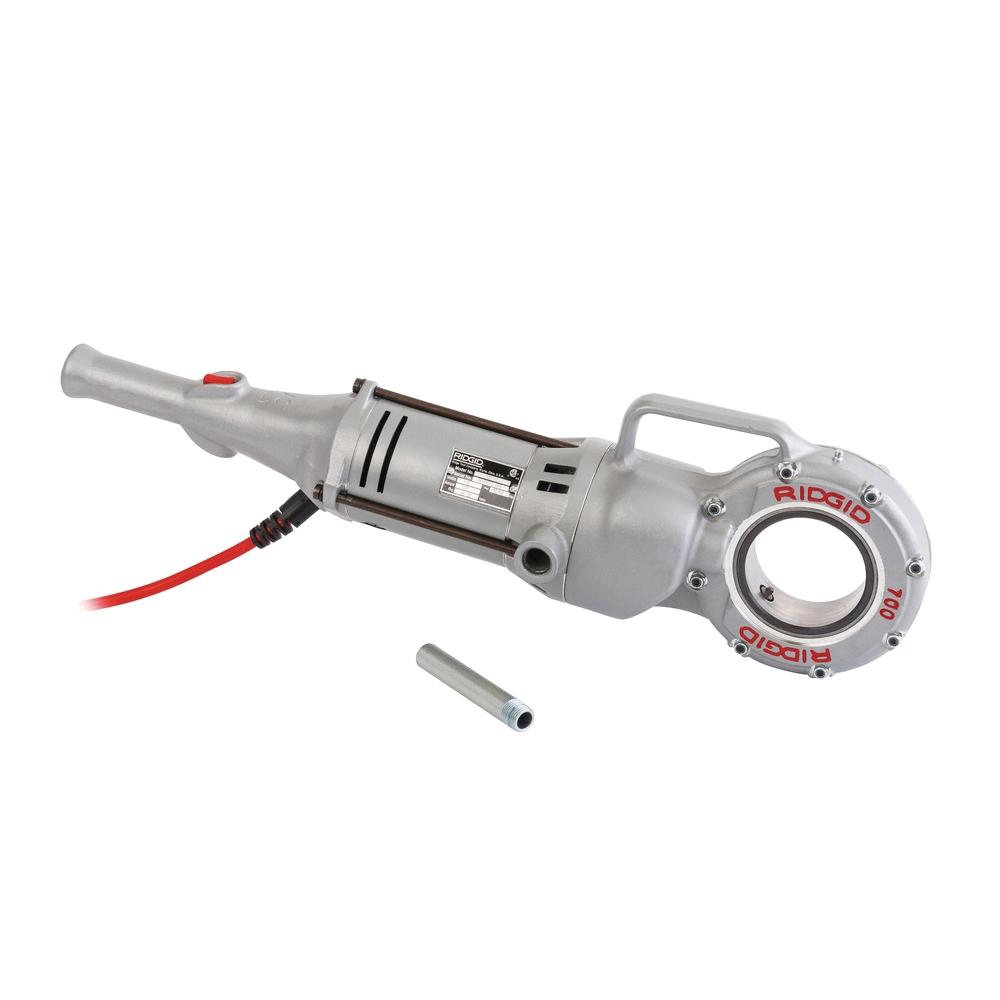

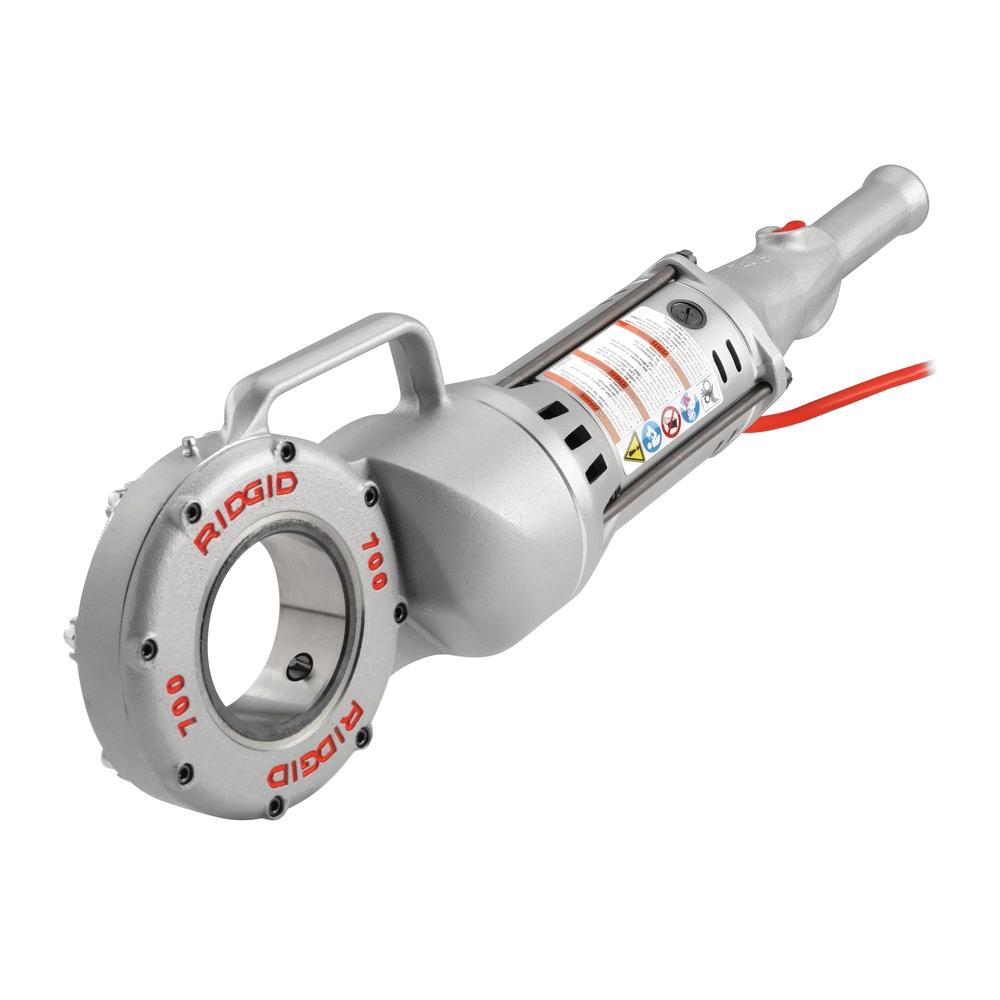

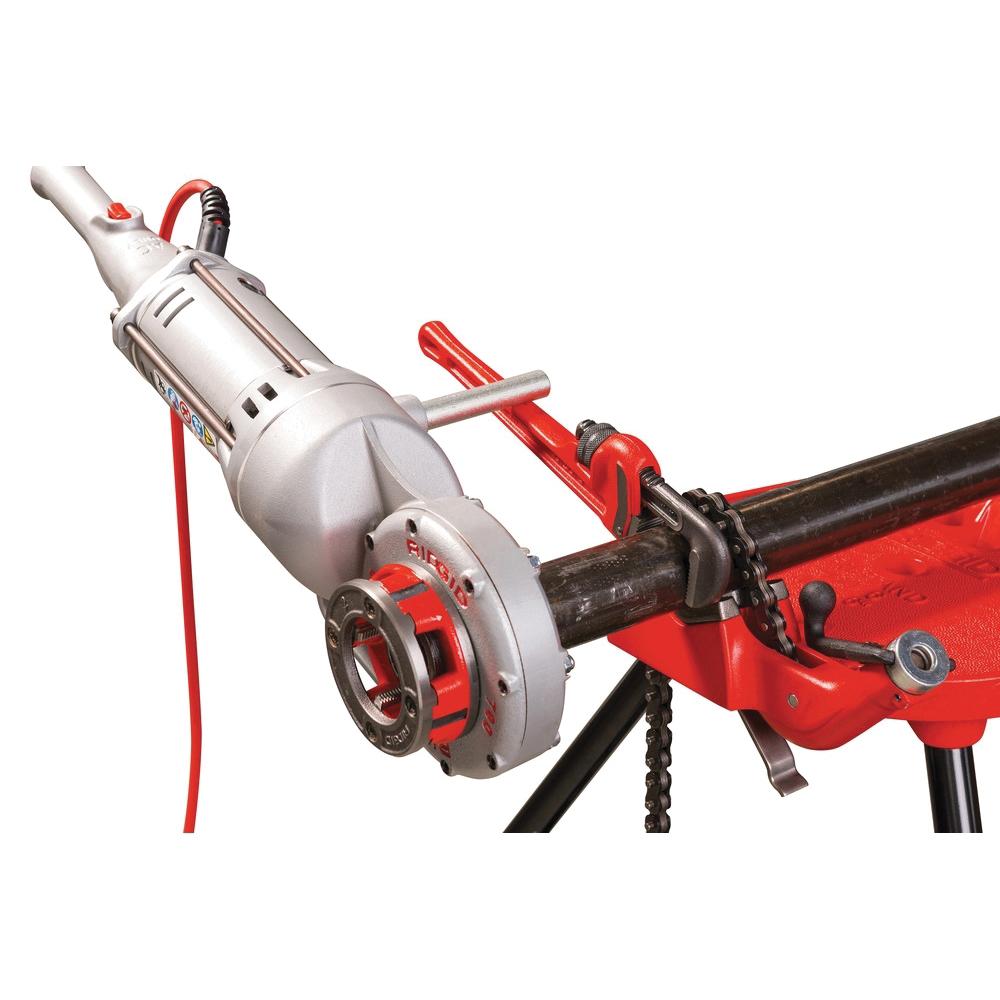

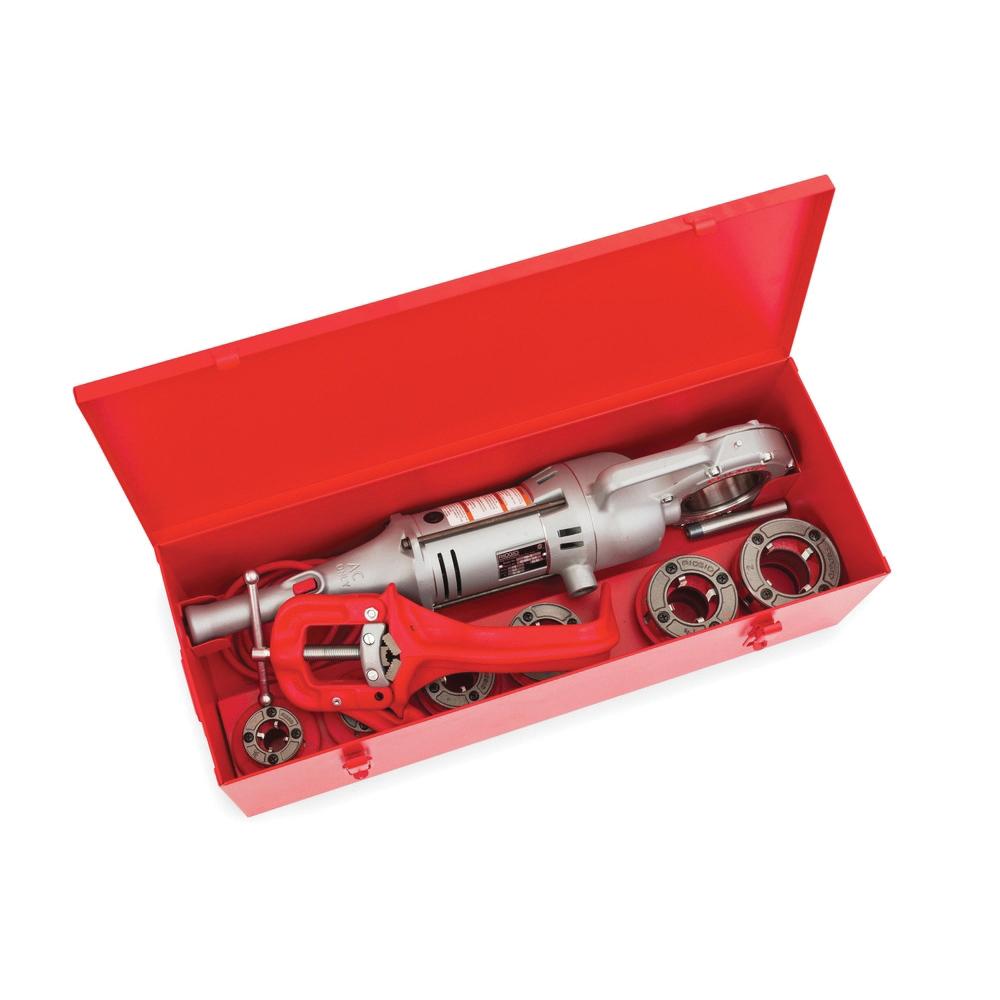

RIDGID® Power Drive Threading Machine, 1/8 to 2 in Pipe, 1/4 to 1 in Rod Pipe Capacity, 115 V, 13 A, 50 Hz, 60 Hz, 1/2 hp, 26 to 30 rpm, 1 Speed, Cast Aluminum Housing, Double Throw Reversible Control, 28-1/4 in Overall Length, 6-1/2 in Overall Width
- Ideal for the demanding needs of mechanical, electrical and plumbing contractors
- Cuts both right and left-hand threads in seconds
- Can also be used to power 258 & 258XL pipe cutters
- Accommodates 1/8 to 2-inch 12-R Die Heads
- Capacity: 1/8 in - 2 in Pipe (6 - 50 mm), 1/4 in- 1 in (8 - 25 mm) Bolt (using 00-RB Die Heads)
- Motor: Single Phase, Universal
- Weight: 25 lbs, (11 kg) Power Drive only
- Length: 28 1/4 in (71.7 cm)
- Switch: Double-throw reversible
- Gear Head: Spur gear reduction face gear drive, Spring-loaded adapter pawls, Hardened steel spindle gear
- Body: Cast aluminum
- Die Heads: 12-R, Other Die Heads with adaptors: 00-R, 00-RB, 11-R
