| Connection Type | : | MNPT x FNPT |
| Dimensions | : | 5-1/4 in L |
| Finish | : | Gold Metallic |
| Material | : | Brass |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 150 psi |
| Temperature Rating | : | 210 deg F |
The temperature and pressure relief valve is designed to protect water heaters from overheating and over-pressurization. It is a component that is integral to the safe operation of the water heater. The valve features a bronze body with MNPT inlet and FNPT outlet connections, unique thermostat with special thermo-bonded coating and a test lever. Temperature relief - 210 deg F (99 deg C), pressure relief range - 75 to 150 psi (5.2 to 10.3 bar).

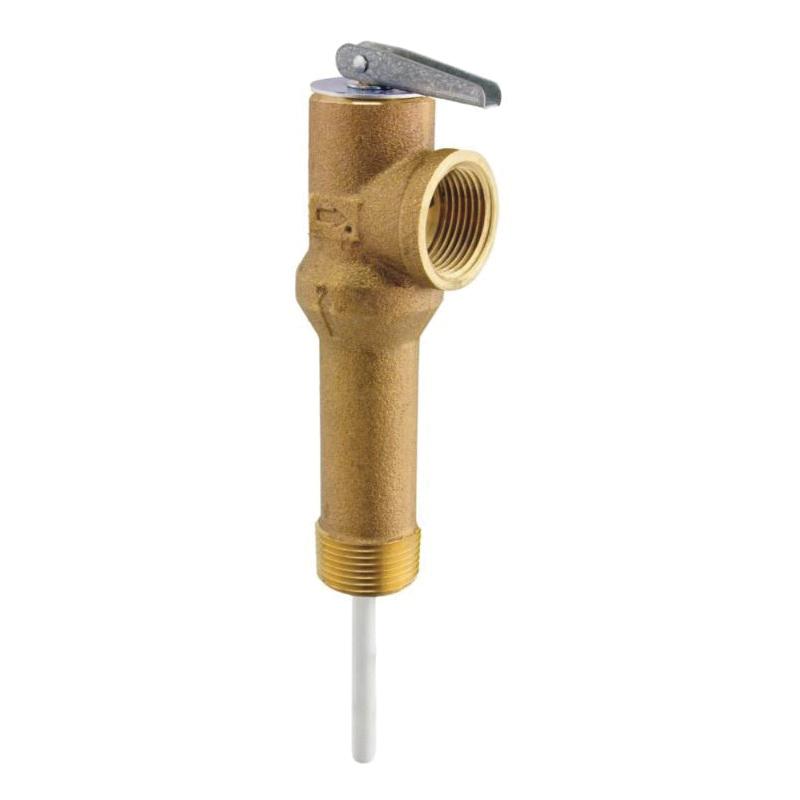

Rheem® Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT Connection, 150 psi, Brass, Finish: Gold Metallic, 210 deg F, 5-1/4 in L
- 2 in L sensor
- Features a unique thermostat with special thermo-bonded coating
- Thermostat is accurate and proven
- Stainless steel springs
- 105000 Btu/hr nominal capacity
- For Energy Star II powered damper, residential FVIR, power direct vent Series heating systems
