| Electrical Connection | : | Screw x 1/4 in Male Quick-Connect Terminal |
| End Type | : | NPT |
| Frequency Rating | : | 60 Hz |
| Gas Type | : | Natural Gas |
| Ignition Type | : | Standing Pilot |
| Inlet Size | : | 3/4 in |
| Nominal Capacity | : | 335000 Btu/hr |
| Outlet Size | : | 1/2 in |
| Overall Height | : | 4-3/4 in |
| Overall Length | : | 3-3/16 in |
| Overall Width | : | 4-1/16 in |
| Pressure Rating | : | 0.5 psi |
| Temperature Rating | : | 32 to 175 deg F |
| Voltage Rating | : | 750 mV |
These gas controls combine a Lite-Rite manual gas cock, safety shut off Pilotstat® assembly, millivoltage automatic valve operator, and optional gas pressure regulator. They require the use of a 750 mV Powerpile generator (thermopile). The generator, heated by the pilot burner flame, provides the electrical energy to operate the combination gas control. A millivoltage thermostat with suitable accessory controls completes the automatic control system for the heating appliance.

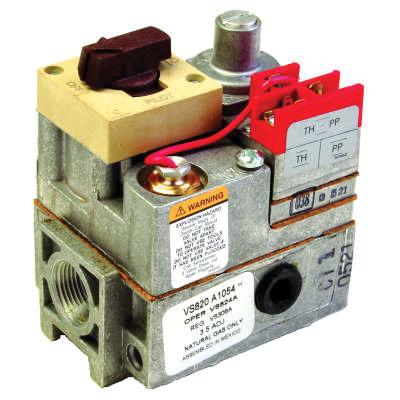

resideo Gas Valve, 3/4 in Inlet, 1/2 in Outlet, NPT End, 335000 Btu/hr Nominal Capacity, Natural Gas, Standing Pilot Ignition, 0.5 psi, 32 to 175 deg F, 750 mV, 60 Hz, Screw x 1/4 in Male Quick-Connect Terminal Electrical Connection, 3-3/16 in Overall Length, 4-1/16 in Overall Width, 4-3/4 in Overall Height
- Easy to install, adjust and service, all adjustments and connections are accessible from top of control
- Add separate Energy Cut Off (ECO) where codes call for dual safety shut off
- Complete safety shut off on pilot flame failure
- LITE-RITE (OFF-PILOT-ON) lighting sequence
- Mounting - 0 to 90 deg in any direction from the upright position of the gas control knob, including vertically
- Body pattern - straight through, multi-tapped with 1/2 in right and left outlets plugged
