| Amperage Rating | : | 3.7 to 7.4 A |
| Contact Rating | : | 10 A at 120 VAC, 3.7 A at 240 VAC |
| Dimensions | : | 4-5/32 in L x 4-11/32 in W x 2-1/2 in H |
| Domestic/Import | : | Import |
| Ignition Type | : | Intermittent, Interrupted |
| Mounting Type | : | Junction Box |
| Safety Switch Timing | : | 15 s, 30s, 45 s |
| Temperature Rating | : | -40 to 147 deg F |
| Voltage Rating | : | 120/240 V |
The R7284 oil primary is a digital, universal primary control, engineered to address the most common industry needs. The R7284U parameters are user defined and provides detailed actionable diagnostics.

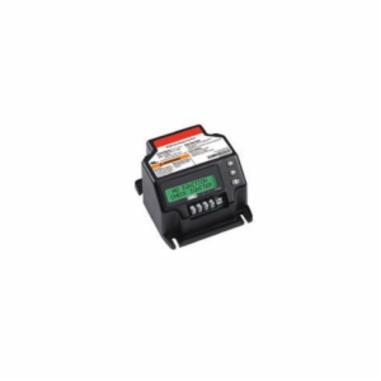

resideo Protectorelay® Universal Electronic Oil Primary Control, 120/240 V, 3.7 to 7.4 A, 10 A at 120 VAC, 3.7 A at 240 VAC Contact Rating, 15 s, 30s, 45 s Safety Switch Timing, -40 to 147 deg F, Intermittent, Interrupted Ignition, Junction Box Mounting, Domestic/Import: Import, 4-5/32 in L x 4-11/32 in W x 2-1/2 in H
- A single part number for nearly all applications helps reduce inventory cost
- 16 character two-line tri-lingual LCD display provides simple programming and diagnostics on select models
- Enunciation of status and faults via LED or display
- No additional tool to purchase to take advantage of all control features
- Monitor igniter and cad cell and alerts technician as to exact cause of lockout
- Error history and baseline readings provide system performance and trends
- EnviraCOM™ enabled for remote access via EnviraLINK™
- Non-volatile memory for settings and diagnostics
- Extensive, actionable diagnostics
- History detailing last 10 events
- Continuous state and CAD cell readings
