| Connection Size | : | 11/32-32 |
| Connection Type | : | MNPT |
| Dimensions | : | 24 in L |
| Domestic/Import | : | Import |
| Resistance | : | 0.02 Ohm |
| Temperature Rating | : | 780 to 1400 deg F |
| Voltage Rating | : | 30 mV |

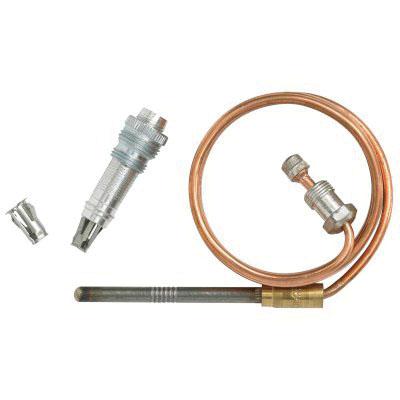

The Q340A thermocouples sense the pilot flame on standing pilot gas fired heating systems. The pilot flame heats the tip of the thermocouple, producing a temperature differential between it and the base to generate 30 mV.
resideo Thermocouple, 30 mV, 11/32-32 Connection, MNPT Connection, 0.02 Ohm Resistance, 780 to 1400 deg F, 24 in L, Domestic/Import: Import
- Push-in clip, split nut or adapter assembly available (depending on model) for easy pilot burner installation
- Male nut connector for Pilotstat® safety control power units
