| Amperage Rating | : | 8 A |
| Bulb Size | : | 3/8 in Dia x 2-7/8 in L |
| Capillary Length | : | 3 in |
| Color | : | Gray |
| Connection Type | : | NPT |
| Contact Configuration | : | SPDT |
| Contact Rating | : | 5.1 A, 8 A Full Load, 30.6 A, 48 A Locked Rotor |
| Differential Temperature | : | 5 to 30 deg F |
| Dimensions | : | 5-5/8 in H x 2 in W x 2-1/8 in D |
| Insulation Depth | : | 1-1/2 in, 3 in |
| Mounting Type | : | Surface |
| Pressure Rating | : | 200 psi |
| Sensing Element | : | Remote Bulb |
| Temperature Rating | : | 100 to 240 deg F |
| Voltage Rating | : | 120 V |
| Well Spud Size | : | 1/2 in, 3/4 in |

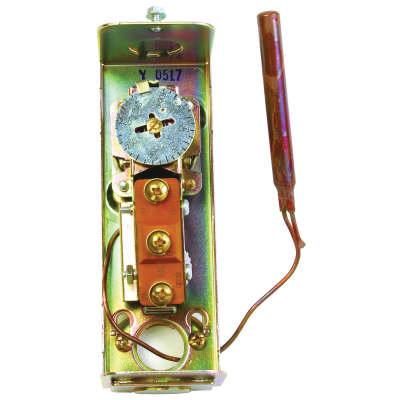

Aquastat® controllers are immersion-type devices for limiting or regulating the temperature of liquids in boilers, storage tanks and other applications where temperature control is required.
resideo Aquastat, 8 A, 120 V, 200 psi, 3/8 in Dia x 2-7/8 in L Bulb, 3 in Capillary Length, 1/2 in, 3/4 in Well Spud, NPT Connection, 5.1 A, 8 A Full Load, 30.6 A, 48 A Locked Rotor Contact Rating, Contact Configuration: SPDT, 1-1/2 in, 3 in Insulation Depth, Remote Bulb Sensing Element, Surface Mounting, Gray, 100 to 240 deg F, 5 to 30 deg F Differential Temperature, 5-5/8 in H x 2 in W x 2-1/8 in D
- Totally enclosed Micro Switch™ snap-acting switches operate on temperature rise to set point
- Visible control point scale and external adjustment screw permit easy setting
- Horizontal or vertical insertion of the sensing element
- Direct, well immersion or surface-mounting of the sensing element available
- Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications
- Direct or well immersion Tradeline models include heat-conductive compound
