| Amperage Rating | : | 8 A |
| Bulb Size | : | 3/8 in Dia x 2-7/8 in L |
| Capillary Length | : | 3 in |
| Differential Temperature | : | 5 to 30 deg F |
| Dimensions | : | 5-5/8 in H x 2 in W x 2-1/8 in D |
| Mounting Type | : | Strap-On |
| Switching Action | : | SPST, Break on Rise |
| Temperature Rating | : | 100 to 240 deg F |
| Voltage Rating | : | 120 V |

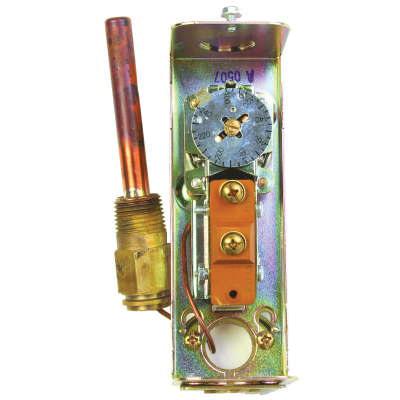

Aquastat® controllers from Resideo are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required. L4006 are used in applications that utilize the existing wells.
resideo Aquastat, 8 A, 120 V, Bulb Size: 3/8 in Dia x 2-7/8 in L, 3 in Length Capillary, SPST, Break on Rise, Strap-On Mount, 100 to 240 deg F, 5 to 30 deg F, 5-5/8 in H x 2 in W x 2-1/8 in D
- Totally enclosed Micro Switch™ snap-acting switches operate on temperature rise to setpoint
- Visible control point scale and external adjustment screw permit easy setting
- Horizontal or vertical insertion of the sensing element
- Direct or well immersion of the sensing element
- Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications
