| Connection Type | : | Lead Wire, Screw Terminal |
| Dimensions | : | 3-3/16 in H x 2-3/8 in W x 3-1/8 in D |
| Frequency Rating | : | 60 Hz |
| Insulation Temperature | : | -20 to 105 deg F |
| Mounting Type | : | Foot |
| Primary Voltage | : | 120/208/240 VAC |
| Secondary Voltage | : | 27 V |
| Temperature Rating | : | -20 to 105 deg F |
| VA Rating | : | 40 VA |
Resideo offers NEMA - National Electrical Manufacturers Association - standard DC20-1992 and general purpose transformers. These transformers are available with single or multiple input voltages and with foot, conduit and plate mounting options. Transformers with circuit breakers that can be manually reset by pressing a button are also available. Resideo also designs transformers for specific environmental requirements and with specialized termination options.

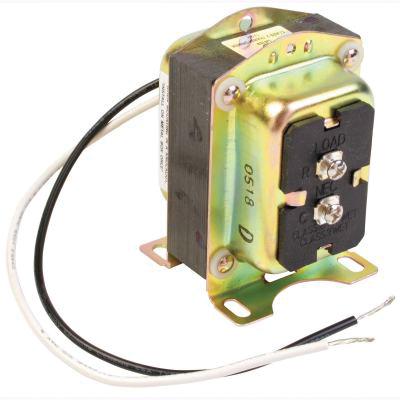

resideo Transformer, 120/208/240 VAC Primary, 27 V Secondary, 40 VA VA Rating, 60 Hz, Foot Mount, Lead Wire, Screw Terminal Connection Type, -20 to 105 deg F Insulation Temperature, -20 to 105 deg F, 3-3/16 in H x 2-3/8 in W x 3-1/8 in D
- Color-coded lead wires for primary connections and screw terminals for secondary connections
- Identified Class 2 not wet, Class 3 wet
- NEMA compliant transformers prevent overcooling, brownout, and burnout
