| Additional Information | : | 72 in Capillary Length |
| Capillary Length | : | 72" |
| Comments | : | Differential at low end of range is 6 to 25 |
| Differential Temperature | : | 3 to 20 deg F |
| Differential | : | 3degF to 20degF |
| Electrical Connection Type | : | Screw Terminal |
| Enclosure Type | : | NEMA 1 |
| Material | : | Steel |
| Mounting Type | : | Universal |
| Operating Temperature | : | 0 to 55 deg F |
| Product Height | : | 2.6 in |
| Product Length | : | 3.4 in |
| Product Width | : | 2 in |
| Series Application | : | Medium Temperature Controls |
| Series | : | O Series |
| Suitable For Use With | : | Refrigerators, Freezers, Coolers, Walk-In Units, Refrigeration Display Cases |
| Switch Type | : | SPDT |
| Switch | : | SPDT |
| Temperature Range | : | 0degF to 55degF |

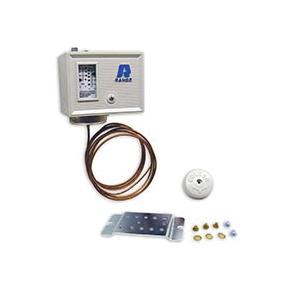

The Ranco® Wide Range O Series Temperature Controls provide a wide selection of controls customized to allow users exact adjustments within manufacturers' limits. The Ranco O Series features heavy-duty plated steel frames, non-conductive covers with front-located captive cover screws, raised screw terminals for fully accessible wiring, and large easy-to-read scales. Recognizing the need for flexibility in design of refrigeration equipment, these controls offer a wide selection for such products as self-contained refrigerators, freezers, coolers, walk-in units, and refrigeration display cases.
RANCO® Medium Temperature Control, Series: O, SPDT Switch, 3 to 20 deg F Differential Temperature, Screw Terminal Electrical Connection, NEMA 1 Enclosure, 0 to 55 deg F Operating Temperature, Universal Mounting, Steel, For Use With: Refrigerators, Freezers, Coolers, Walk-In Units, Refrigeration Display Cases, Additional Information: 72 in Capillary Length
- Maximum adjustment accuracy with 7 revolution range adjustment screws
- NEMA 1 enclosure with non-conductive cover
- Universal mounting and compact design
- Laser-welded bellows for extended life
- Wide range adjustable differential
- The O60 Series have these additional features: 10 times setting sensitivity of most other wide range controls (O60 series only)
- Gas-filled, nonposition-sensitive bulb (O60 series only)
