| Additional Information | : | 3.3 in L x 2 in W x 2.65 in H Dimensions |
| Capillary Length | : | NA |
| Comments | : | IP44 part number: 206-00232-002 |
| Connection Size | : | 1/4 in |
| Connection Type | : | SAE Flare Nut |
| Differential Pressure | : | 10 to 40 psi |
| Differential | : | 10 to 40 PSI (1 to 3 bar) |
| Maximum Pressure | : | 100 psi |
| Pressure Connection | : | 1/4" SAE Flare Nut |
| Pressure Range | : | 10" Hg to 100 PSI (0.3 to 7 bar) |
| Pressure Rating | : | 10 inHg to 100 psi |
| Product Height | : | 2.65 in |
| Product Length | : | 3.3 in |
| Product Width | : | 2 in |
| Region | : | NA |
| Reset Type | : | Automatic |
| Reset | : | Auto |
| Series Application | : | Low Pressure Controls |
| Series | : | O Series |
| Suitable For Use With | : | Low Pressure Controls |
| Switch Type | : | SPDT |
| Switch | : | SPDT |

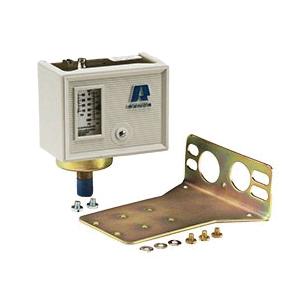

The Ranco® O Series Single Low Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.
RANCO® Single Low Pressure Control, Series: O, 10 inHg to 100 psi, 100 psi Maximum Pressure, 10 to 40 psi Differential Pressure, SPDT Switch, 1/4 in Connection, SAE Flare Nut Connection, Automatic Reset, For Use With: Low Pressure Controls, Additional Information: 3.3 in L x 2 in W x 2.65 in H Dimensions
- Controls available for most refrigerant types
- High-amp rated switch (SPST) design (O10-1402/O10-1483)
- Super Cap® capillary vibration protection system
- Non-conductive front cover with captive screw
- Adjustable differential and range
- Easy-to-read scale plate
- Vibration cone (absorbs and reduces vibration away from brazed joint)
- Low mass copper alloy capillary tube (reduces capillary stress caused by equipment vibration)
- Compatible with refrigerants 134A, 401A, 401B, 402A, 402B, 403A, 403B and 404A
- Cap included on all Australia temperature controls. Optional for all other regions
