| Additional Information | : | 5.5 in L x 2 in W x 2.7 in H Dimensions, 36 in L Capillary |
| Capillary Length | : | 36" (0.9m) |
| Connection Size | : | 1/4 in |
| Connection Type | : | SAE Flare Nut |
| Differential Pressure | : | 70 psi High, 5 to 35 psi Low |
| High Pressure (Open High) Cut-Out PSI | : | 150 to 450 PSI (10 to 31 bar) |
| High Pressure (Open High) Differential PSI | : | 70 (5) Fixed |
| High Reset | : | Auto |
| Low Pressure (Open Low) Cut-In | : | 12" Hg to 50 PSI (0.4 to 3.5 bar) |
| Low Pressure (Open Low) Differential | : | 5 to 35 PSI (0.3 to 2.4 bar) |
| Low Reset | : | Auto |
| Open Pressure | : | 150 to 450 psi High, 12 inHg to 50 psi Low |
| Pressure Connection | : | 1/4" SAE flare nut |
| Product Height | : | 2.7 in |
| Product Length | : | 5.5 in |
| Product Width | : | 2 in |
| Region | : | NA |
| Reset Type | : | Automatic |
| Series Application | : | Dual Pressure Control |
| Series | : | O Series |
| Suitable For Use With | : | Dual Pressure Controls |
| Switch Type | : | SPST |
| Switch | : | SPST |

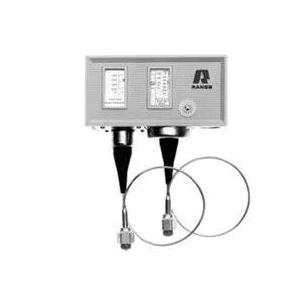

The Ranco® Dual Pressure Controls combine the functions of a single high-pressure limit control and a single low-pressure control in one unit with a single pole, single throw (SPST) switch.
RANCO® Dual Pressure Control, Series: O, 70 psi High, 5 to 35 psi Low Differential Pressure, 150 to 450 psi High, 12 inHg to 50 psi Low Open Pressure, SPST Switch, 1/4 in Connection, SAE Flare Nut Connection, Automatic Reset, For Use With: Dual Pressure Controls, Additional Information: 5.5 in L x 2 in W x 2.7 in H Dimensions, 36 in L Capillary
- Convertible feature allows selection of manual or reset function when operating at high pressure (O12‑4833/O12-4834)
- A wide range of high-pressure manual or automatic reset controls can be replaced (O12-4833 or O12‑4834)
- A high-pressure limit is combined with suction pressure sensing to provide temperature control and/or pump down
- High-limit adjustment screw
- Low-pressure differential and range adjusting screw
- Selector screw for manual or automatic
- Reset button
- Low-pressure scale plate
- High-impact plastic cover with center mount screw
- High-pressure scale plate
- Super Cap® capillary protection system
- Color-coded for easy identification of pressure line
- High-side capillary flare nut (silver)
- Low-side capillary flare nut (brass)
- Cap included on all Australia temperature controls. Optional for all other regions
