| Additional Information | : | Wide Range, 72 in L Capillary |
| Adjustable Control Range | : | 25 to 75 deg F |
| Capillary Length | : | 72" (182.88cm) w/ Remote Bulb |
| Comments | : | IP44 part number: NA |
| Differential Temperature | : | 3 to 20 deg F |
| Differential | : | 3degF to 20degF (-16.11degC to -6.67degC) |
| Dimensions | : | 3.3 in L x 1.9 in W x 2.6 in H |
| Enclosure Type | : | NEMA 1 |
| Material | : | Steel |
| Packaging | : | Bulk (25 pcs) |
| Product Height | : | 2.6 in |
| Product Length | : | 3.3 in |
| Product Width | : | 1.9 in |
| Region | : | NA |
| Series Application | : | High Temperature Control |
| Series | : | O Series |
| Switch Type | : | SPST |
| Switch | : | SPST |
| Temperature Range | : | 25degF to 75degF (-4degC to 23.88degC) |

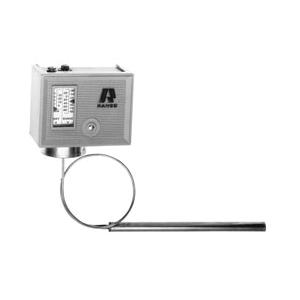

The Ranco® Wide Range O Series Temperature Controls provide a wide selection of controls customized to allow users exact adjustments within manufacturers' limits. The Ranco O Series features heavy-duty plated steel frames, non-conductive covers with front-located captive cover screws, raised screw terminals for fully accessible wiring, and large easy-to-read scales. Recognizing the need for flexibility in design of refrigeration equipment, these controls offer a wide selection for such products as self-contained refrigerators, freezers, coolers, walk-in units, and refrigeration display cases.
RANCO® High Temperature Control, Series: O, SPST Switch, 25 to 75 deg F Adjustable Control, 3 to 20 deg F Differential Temperature, NEMA 1 Enclosure, Steel, 3.3 in L x 1.9 in W x 2.6 in H, Additional Information: Wide Range, 72 in L Capillary
- Maximum adjustment accuracy with 7 revolution range adjustment screws
- NEMA 1 enclosure with non-conductive cover
- Universal mounting and compact design
- Laser-welded bellows for extended life
- Wide range adjustable differential
- The O60 Series have these additional features: 10 times setting sensitivity of most other wide range controls (O60 series only)
- Gas-filled, nonposition-sensitive bulb (O60 series only)
- Cap included on all Australia temperature controls. Optional for all other regions.
