| Additional Information | : | 1-Stage |
| Adjustable Control Range | : | -30 to 220 deg F |
| Ambient Humidity | : | 0% to 95% HR, non-condensing |
| Differential Temperature | : | 1 to 30 deg F |
| Differential | : | 1degF to 30degF (1degC to 16degC) |
| Dimensions | : | 6.4 in L x 2.7 in W x 2.4 in H |
| Display Type | : | LCD |
| Electrical Rating | : | 24V AC |
| Enclosure Type | : | NEMA 1 |
| Enclosure | : | NEMA 1 |
| Factory Part Number | : | ETC-112100-000 |
| Number of Stages | : | One |
| Product Height | : | 2.4 in |
| Product Length | : | 6.4 in |
| Product Width | : | 2.7 in |
| Series Application | : | Electronic Temperature Control |
| Series | : | ETC Series |
| Temperature Range | : | -30degF to 220degF (-34degC to 104degC) |
| Voltage Rating | : | 24 V |

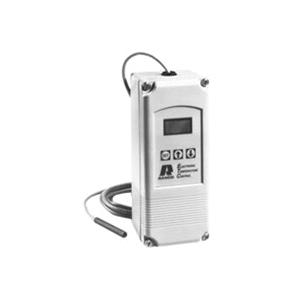

The Ranco® ETC Series Electronic Temperature Control offers a full-featured electronic replacement for electrical-mechanical temperature controls used in many commercial refrigeration applications. With its wide temperature range, one and two stage capability, selectable heating/cooling modes and multi-voltage input, the ETC is designed to provide application flexibility. Models available include 120/208/240V AC and 24V AC.
RANCO® Electronic Temperature Control, Series: ETC, 24 V, -30 to 220 deg F Adjustable Control, 1 to 30 deg F Differential Temperature, LCD Display, NEMA 1 Enclosure, 6.4 in L x 2.7 in W x 2.4 in H, Additional Information: 1-Stage
- Wide temperature range (-30degF to 220degF) (-34.4degC to 104.4degC)
- Wide differential adjustment (1degF to 30degF)
- LCD read-out for sensor temperature, control settings, and relay status
- High Amp output relay (FLA 16 Amps at 120V AC and 8 Amps at 208/240V AC) single stage
- EEPROM memory retains control settings during power outages
- Keypad lockout to prevent end-user alteration of settings
- 8 foot lead with sensor is extendable up to 400 feet using 18 or 22-gauge thermostat wire
- Easy 4-step set-up
- Heavy-duty relay is 1 HP rated
- Selectable degF or degC heating/cooling modes
- Single and two stage models
- NEMA 1 case and cover
- NEMA 4X models available
