| Additional Information | : | SPDT Switch, 60 in L Capillary, 5/16 x 5-1/16 in Bulb |
| Application | : | Heat Pump Controls |
| Capillary Length | : | 60" |
| Dimensions | : | 3.8 in L x 1.15 in W x 1.6 in H |
| Domestic/Import | : | Import |
| Electrical Rating | : | 240V |
| Product Height | : | 1.6 in |
| Product Length | : | 3.8 in |
| Product Width | : | 1.15 in |
| Sensing Element | : | 5/16" x 5-1/16" Bulb |
| Series Application | : | E15 Series Timer-Initiated Heat Pump De-Ice Control |
| Series | : | E15 Series |
| Suitable For Use With | : | E15 Series Timer-Initiated Heat Pump De-Ice Controls and Heat Pump Controls |
| Switch | : | SPDT |
| Temperature Range | : | Adjustable 55degF to 78degF |
| Temperature Rating | : | 55 to 78 deg F |
| Timing | : | Field Selectable: 30, 45, or 90 Minutes |
| Voltage Rating | : | 240 V |

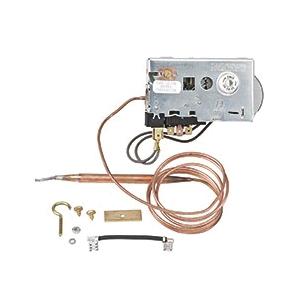

The Ranco® Heat Pump Controls provide accurate control of temperature and defrost for heat pumps. The E15-2601 provides field-adjustable timer control for de-icing of heat pump outdoor coils. Interlock prevents more than one defrost cycle per time period and temperature must be 28degF or lower to start.
RANCO® Heat Pump Control, Series: E15, 240 V, For Use With: E15 Series Timer-Initiated Heat Pump De-Ice Controls and Heat Pump Controls, 55 to 78 deg F, 3.8 in L x 1.15 in W x 1.6 in H, Domestic/Import: Import, Additional Information: SPDT Switch, 60 in L Capillary, 5/16 x 5-1/16 in Bulb
- Laser-welded stainless steel sensing elements
- Narrower differentials attainable
- Defrost includes field selectable defrost cycles
