| Additional Information | : | 26 in L Capillary |
| Capillary Length | : | 26" |
| Differential Temperature | : | 3.5 deg F |
| Differential | : | 3.5degF |
| Dimensions | : | 2.5 in L x 1.6 in W x 2.1 in H |
| Product Height | : | 2.1 in |
| Product Length | : | 2.5 in |
| Product Width | : | 1.6 in |
| Series Application | : | C17-100 Two Stage Control |
| Series | : | C Series |
| Stages | : | 1 |
| Switch Type | : | (2) SPDT |
| Switch | : | 2 SPDT |
| Temperature Range | : | 71degF to 101degF (Cooling), 64degF to 94degF (Heating) |
| Temperature Settings | : | 71 to 101 deg F Cooling, 64 to 94 deg F Heating |

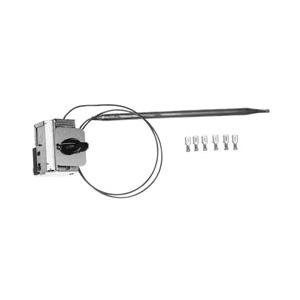

The Ranco® Heat / Cool Controls replace many OEM controls which govern the on/off compressor function. Heat and cool controls are found on room air conditioners such as packaged terminal, room and through-the-wall heat and cool units.
RANCO® Room Control, Series: C, 1 Stages, (2) SPDT Switch, 3.5 deg F Differential Temperature, 71 to 101 deg F Cooling, 64 to 94 deg F Heating Temperature Settings, 2.5 in L x 1.6 in W x 2.1 in H, Additional Information: 26 in L Capillary
- Fixed or adjustable temperature settings
- Laser-welded stainless steel sensing elements
- Narrower differentials attainable
- C12 can be used for cool only units or heat/cool units when used with a separate changeover switch
- C17 has two SPDT electrically isolated switches, calibrated at different set points and differentials
- Two stage SPDT switches are staged 3.5 degF
