| Additional Information | : | 36 in L Capillary |
| Capillary Length | : | 36" |
| Differential Temperature | : | 3 deg F |
| Differential | : | 3degF |
| Dimensions | : | 2.5 in L x 2 in W x 1.1 in H |
| Product Height | : | 1.1 in |
| Product Length | : | 2.5 in |
| Product Width | : | 2 in |
| Series Application | : | C12/C21 Single Stage Control |
| Series | : | C Series |
| Stages | : | 1 |
| Switch Type | : | SPDT |
| Switch | : | SPDT |
| Temperature Range | : | 60degF to 98degF |
| Temperature Settings | : | 60 to 98 deg F |

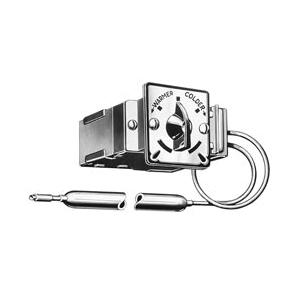

The Ranco® Heat / Cool Controls replace many OEM controls which govern the on/off compressor function. Heat and cool controls are found on room air conditioners such as packaged terminal, room and through-the-wall heat and cool units.
RANCO® Room Control, Series: C, 1 Stages, SPDT Switch, 3 deg F Differential Temperature, 60 to 98 deg F Temperature Settings, 2.5 in L x 2 in W x 1.1 in H, Additional Information: 36 in L Capillary
- Fixed or adjustable temperature settings
- Laser-welded stainless steel sensing elements
- Narrower differentials attainable
- C12 can be used for cool only units or heat/cool units when used with a separate changeover switch
- C17 has two SPDT electrically isolated switches, calibrated at different set points and differentials
- Two stage SPDT switches are staged 3.5 degF
