| Additional Information | : | 48 in L Capillary, Screwdriver Adjust, -5 deg F Normal Off, 5 deg F Normal On, 10.5 deg F Warm On |
| Adjust Type | : | Screwdriver |
| Capillary Length | : | 48" |
| Differential Temperature | : | 10 deg F |
| Differential | : | 10degF |
| Dimensions | : | 2.5 in L x 1.1 in W x 2.5 in H |
| Normal Off | : | -5degF |
| Normal On | : | 5degF |
| Off Position | : | Yes |
| Product Height | : | 2.5 in |
| Product Length | : | 2.5 in |
| Product Width | : | 1.1 in |
| Series Application | : | A30 Series Constant Differential Control with Dial |
| Series | : | A30 Series |
| Switch Type | : | SPST |
| Switch | : | SPST |
| Warm On | : | 10.5degF |
The Ranco® A22, A30 and 9530 Series Constant Differential Temperature Controls are designed to switch electrical components of refrigeration systems in response to sensed temperatures.

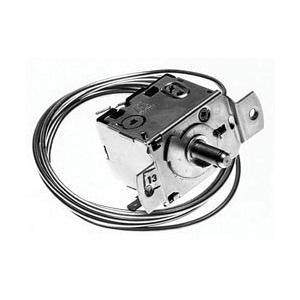

RANCO® Cold Control, Series: A30, SPST Switch, 10 deg F Differential Temperature, 2.5 in L x 1.1 in W x 2.5 in H, Additional Information: 48 in L Capillary, Screwdriver Adjust, -5 deg F Normal Off, 5 deg F Normal On, 10.5 deg F Warm On
- Laser-welded stainless steel bellows
- Fixed or adjustable temperature settings
- High-amperage contacts
- Pneumatic action provided by vapor-filled capillary or capillary with bulb sensing elements
- Constant On or Off positions available
- Choice of mounting brackets, adjustment ranges and cams, and slotted or flatted shafts
- Standard 1/4" quick-connect terminals with optional screw terminals
