| Additional Information | : | 66 in L Capillary, 19 deg F Cold On,11 deg F Cold Off, 27 deg F Normal Off, 35 deg F Normal On, 51 deg F Warm On |
| Capillary Length | : | 66" |
| Cold Off | : | 11degF |
| Cold On | : | 19degF |
| Comments | : | Does not have "Off" position |
| Differential Temperature | : | 8 deg F |
| Differential | : | 8degF |
| Dimensions | : | 1.5 in L x 1.1 in W x 1.5 in H |
| Normal Off | : | 27degF |
| Normal On | : | 35degF |
| Off Position | : | No |
| Product Height | : | 1.5 in |
| Product Length | : | 1.5 in |
| Product Width | : | 1.1 in |
| Series Application | : | A22/A30 Series Adaptable Constant Differential Control |
| Series | : | A Series |
| Switch Type | : | SPDT |
| Switch | : | SPDT |
| Warm On | : | 51degF |
The Ranco® A22, A30 and 9530 Series Constant Differential Temperature Controls are designed to switch electrical components of refrigeration systems in response to sensed temperatures.

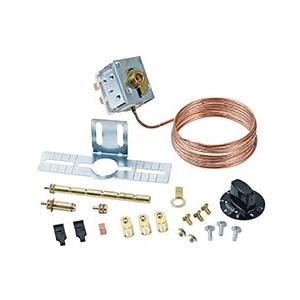

RANCO® Cold Control, Series: A, SPDT Switch, 8 deg F Differential Temperature, 1.5 in L x 1.1 in W x 1.5 in H, Additional Information: 66 in L Capillary, 19 deg F Cold On,11 deg F Cold Off, 27 deg F Normal Off, 35 deg F Normal On, 51 deg F Warm On
- Laser-welded stainless steel bellows
- Fixed or adjustable temperature settings
- High-amperage contacts
- Pneumatic action provided by vapor-filled capillary or capillary with bulb sensing elements
- Constant On or Off positions available
- Choice of mounting brackets, adjustment ranges and cams, and slotted or flatted shafts
- Standard 1/4 quick-connect terminals with optional screw terminals
