| Amperage Rating | : | 0.53 A |
| BTU Rating | : | 17700 Btu/hr |
| CFM Rating | : | 380 cfm |
| Connection Type | : | Flared |
| Dehumidification | : | 4.1 pt/hr |
| Dimensions | : | 10-3/8 in H x 26-1/2 in W x 26-1/2 in D |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Material | : | Steel |
| Mounting Type | : | Cassette |
| Phase | : | 1 ph |
| Power Rating | : | 24 W |
| Refrigerant Type | : | R-410A |
| Series | : | FJM Series |
| Sound Level | : | 39 dBA |
| Temperature Rating | : | 80 deg F |
| Vent, Ducted or Ductless | : | Ductless |
| Voltage Rating | : | 208 to 230 V |

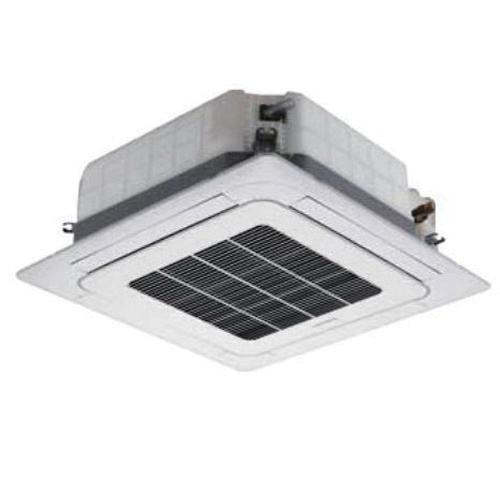

Quietside® Mini-Split Air Conditioner, Series: FJM Series, 208 to 230 V, 0.53 A, 24 W, 60 Hz, 1 ph, 17700 Btu/hr, 380 cfm CFM Rating, Flared, R-410A, Ductless Vent, Ducted or Ductless, 39 dBA, 4.1 pt/hr Dehumidification, Cassette Mount, Steel, Galvanized, 80 deg F, 10-3/8 in H x 26-1/2 in W x 26-1/2 in D
- Electro-static, washable, pleated filter as standard (included with fascia panel)
- Built-in condensate pump and check valve with maximum 29 ft lift
- Knock-out for outside air capability (with booster fan connection)
- Fascia panel shall have LED indicator lights, IR receiver and four motorized louvers (independent louver control is possible with wireless or premium wired controller)
- High voltage terminal block temperature sensor to disable unit in the event overheating of power connection
- The indoor unit shall be powered by the outdoor unit
- Galvanized steel frame with HIPS chassis and fascia panel certified to UL94 V0
- The heat exchanger shall be mechanically bonded fin to copper tube
- Single turbo indoor fan
- Three-speed fan settings and auto setting
- Control signal shall be a DDC-type signal
- Interconnect control wire between outdoor and indoor units shall be 16 AWG x two-shielded
- Controls shall integrate with a BMS system
- The system shall integrate with the Samsung controls solution
