| Amperage Rating | : | 0.12 A Running A |
| BTU Rating | : | 17100 Btu/hr |
| CFM Rating | : | 600 cfm |
| Connection Type | : | Flared |
| Dimensions | : | 11-9/16 in H x 41-7/8 in W x 12-1/2 in D |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Material | : | Steel |
| Mounting Type | : | Wall |
| Phase | : | 1 ph |
| Power Rating | : | 27 W |
| Refrigerant Type | : | R-410A |
| Series | : | FJM Series |
| Sound Level | : | 42 dBA |
| Temperature Rating | : | 80 deg F |
| Tonnage | : | 1.5 ton |
| Vent, Ducted or Ductless | : | Ductless |
| Voltage Rating | : | 208 to 230 V |

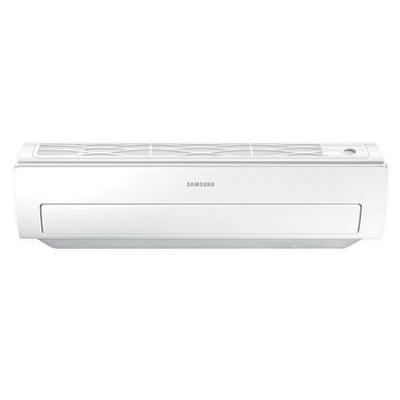

Samsung Mini-Split Heat Pump, Series: FJM Series, 208 to 230 V, 0.12 A Running A, 27 W, 60 Hz, 1 ph, 17100 Btu/hr, 600 cfm CFM Rating, Flared, R-410A, 1.5 ton, Ductless Vent, Ducted or Ductless, 42 dBA, Wall Mount, Steel, Galvanized, 80 deg F, 11-9/16 in H x 41-7/8 in W x 12-1/2 in D
- High voltage terminal block temperature sensor to disable unit in the event overheating of power connection
- Triangle design to provide optimal airflow in and out of the unit
- Refrigerant pipes, drain pipe, high voltage and low-voltage shall be accessible from the bottom of the unit to provide simplified installation and service
- Refrigerant and drain pipe direction can be applied to exit the right, left, bottom or back sides of the indoor unit
- The drain outlet hose can connect to the left (standard) or right side of the drain pain to provide flexibility during installation
- The indoor unit shall be powered by the outdoor unit
- HIPS chassis certified to UL94 V0 with galvanized steel mounting bracket
- The heat exchanger shall be mechanically bonded fin to copper tube
- Indoor fan is a single, anti-bacterial, crossflow-type, three-speed fan settings and auto setting, motorized vertical swing (up-down) louver
- Control signal shall be a DDC-type signal
- Interconnect control wire between outdoor and indoor units shall be 16 AWG x two-shielded
- The indoor unit shall ship with a wireless controller and batteries as standard
- Controls shall integrate with a BMS system
- The system shall integrate with the Samsung controls solution
- Compatibility - will only operate with Samsung outdoor unit model numbers AJ024JCJ3CH/AA, AJ036JCJ5CH/AA
- 4.1 L/hr moisture removal
