| Body Material | : | Brass |
| Connection Type | : | FNPT |
| Dimensions | : | 5-7/16 in H |
| Flow Rate | : | 23 gpm |
| Inlet to Outlet Length | : | 4-7/8 in |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 125 psi |
| Series | : | LFLM490 Series |
| Temperature Rating | : | 5 to 200 deg F |

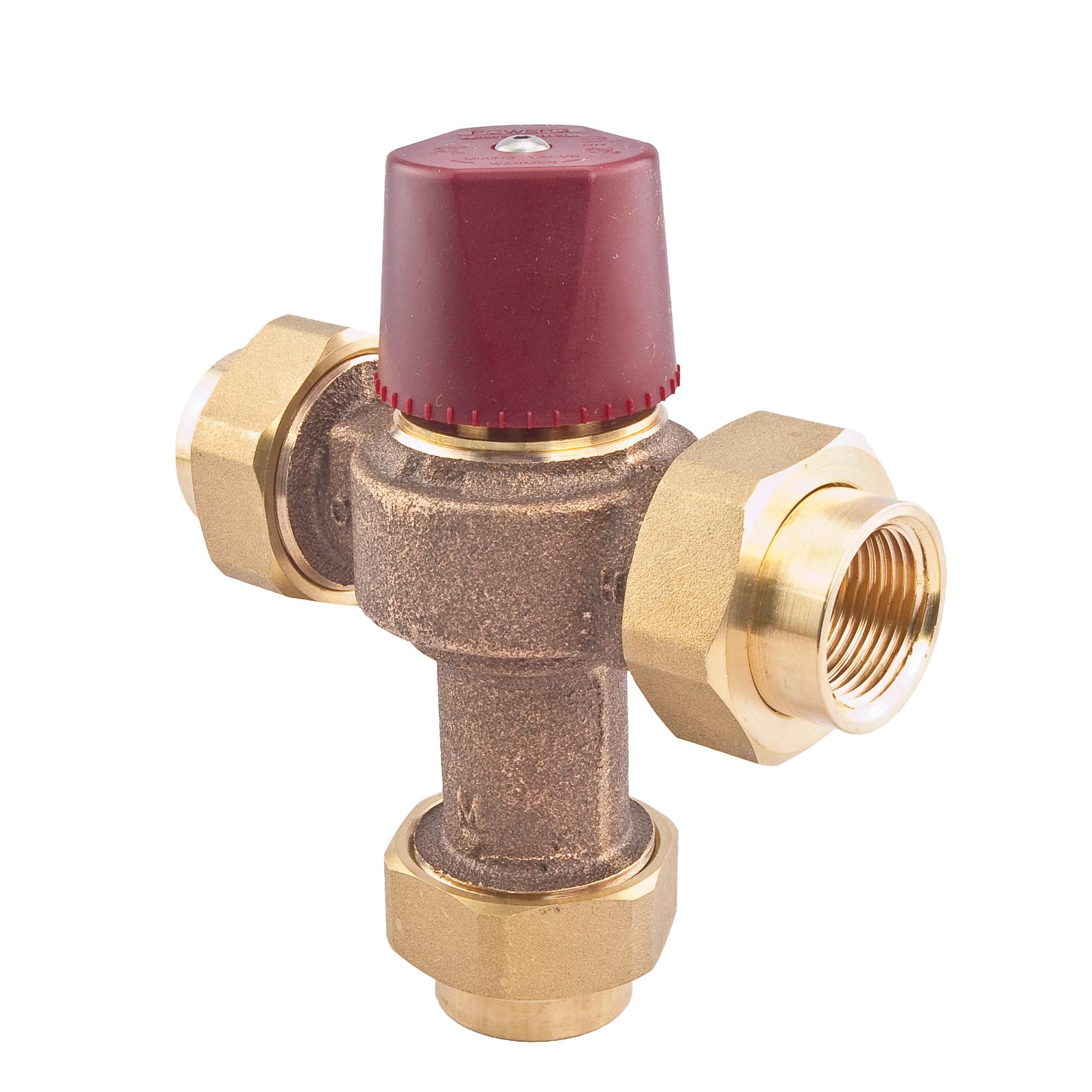

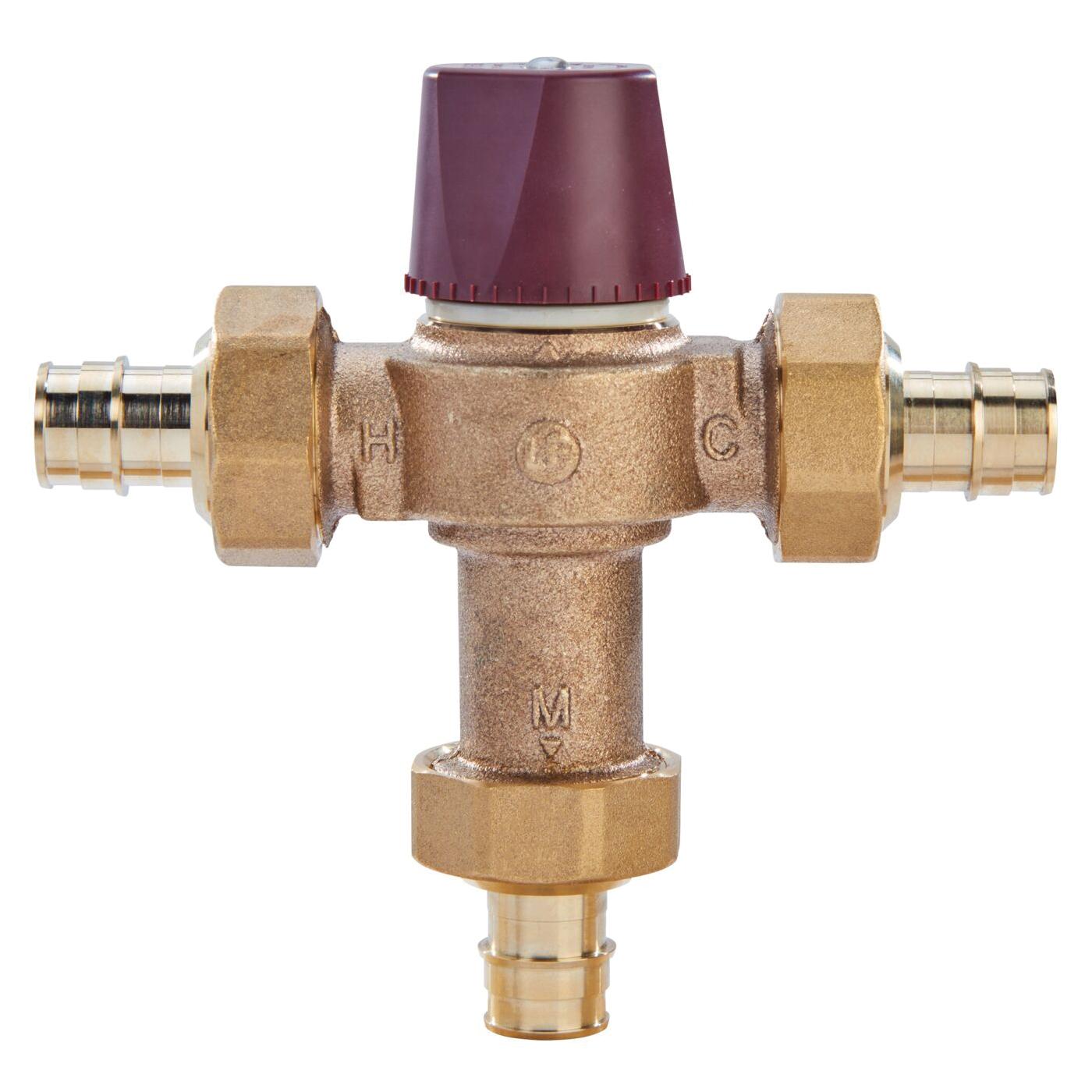

HydroGuard® LFLM490 thermostatic tempering valves are ideal for hot water heaters, providing flow rates as high as 23 gpm. Compact design and lead-free brass construction simplify installation and maintenance while ensuring years of dependable service. Unique handle mechanism allows exact temperature selection to be locked in for added protection. The Series LFLM490 and LFLM490-10 features powers advanced paraffin-based actuation technology, integral checks and inlet screens to prevent cross flow and contamination. The thermostatic element ensures optimal, consistent performance over a wide range of temperatures. The Series LFLM490 and LFLM490-10 are ASSE 1017 listed and CSA B125 certified.
POWERS™ HydroGuard® Thermostatic Tempering Valve, LFLM490 Series, 3/4 in Nominal, FNPT Connection, 125 psi, 23 gpm Flow Rate, Water Media, 4-7/8 in Inlet to Outlet Length, Brass Body, 5 to 200 deg F, 5-7/16 in H
- Adjustable temperature selection can be locked in for added protection
- Integral checks and screen prevents cross flow and contamination
