| AFUE | : | 196 |
| AHRI Net MBH | : | 47 |
| Fuel Type | : | Natural Gas |
| Fuel | : | 0.827 |
| Htg Cap Mbh | : | 62 |
| Htg. Cap. MBH | : | 62 |
| Input MBH | : | 75 |
| Model | : | 1603HSID |
| Pump | : | NAT |
| oversized | : | Yes |

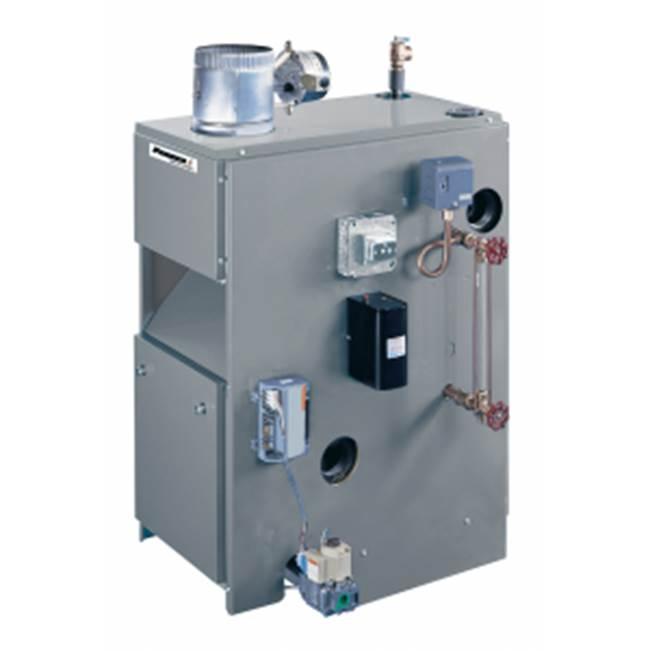

With an efficiency of up to 82.7%, the 16 Series features cast iron sections and push nipples. An integral draft diverter protects against harmful back drafts to ensure safe operation. Low water cut-off, pressure limit control and pop safety valve are also standard safety features. The 16 Series incorporates a 6 in steam chest which allows the boiler to generate ample amounts of steam. The 2 1/2 in supply tappings provide easy access for steam to enter the distribution system and heat your home quickly.
Afue-196,Ahri Net Mbh-47,Htg Cap Mbh-62,Input Mbh-75,Warranty-https://penncoboilers.com/sites/default/files/240013158_Pennco%20Consolidated%20Warranty%20-%20October%202020-B.pdf
- Assembled boiler with insulated jacket
- Completely installed and wired gas control system
- Titanium composite burners
- Gas manifold with orifices
- Automatic redundant combination gas valve, 24 volt, with pilot filter and regulator
- Intermittent pilot control
- Continuous retry 100% shut-off
- Combination pilot burner/electrode/flame sensor and integral draft diverter
- 24 volt transformer
- Flame roll-out safety shut-off fuse link (roll-out switch) and blocked vent safety shut-off manual reset disc thermostat (spill switch) with spare fuse link included
- Electronic low water cut-off with 3/4 in probe
- Pressure limit control
- Steam pressure gauge
- Glass water level gauge
- 3/4 in boiler drain valve
- 15 psi ASME pop safety valve
- (2) 2-1/2 in supply tappings
- (2) 2-1/2 in return tappings
- (2) 2-1/2 in square head pipe plugs - to plug unused supply and return tappings
