| Body Material | : | Brass |
| Capillary Length | : | 30 in |
| Charge Type | : | Type GA |
| Connection Type | : | ODF Solder |
| Dimensions | : | 3.66 in H |
| Element Size | : | 43 |
| Equalizer Size | : | 1/4 in ODF |
| Equalizer Type | : | External |
| Nominal Capacity | : | 5 ton |
| Nominal Size | : | 1/2 x 5/8 in |
| Pressure Rating | : | 450 psi |
| Refrigerant Type | : | R-22 (Green) |
| Seat Material | : | Brass |
| Strainer Type | : | 100 Mesh Removable |

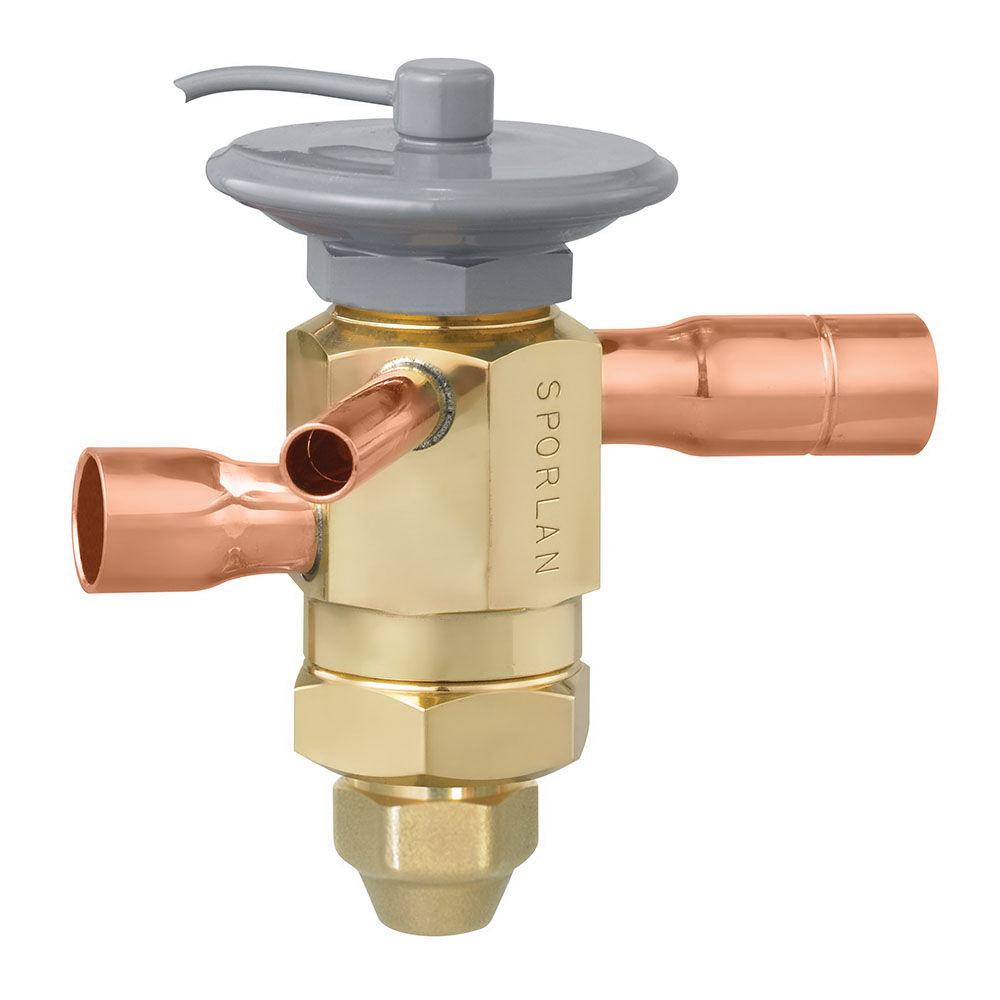

The Sporlan® type R-ER-SR and RC balance ported thermostatic expansion valves have a brass bar stock body. The R valve has flare connections, the ER has extended ODF connection and SR has extended ODF connections with forged inlet and replaceable strainer. Type RC valve contains an internal check valve. They are available with adjustable superheat, long-lasting replaceable power element and accessible internal parts. Each valve is factory tested to ensure positive leak-free performance. The balance port design provides perfect pin and port alignment and prevents pressure drop across the valve from influencing valve operation. For over 80 Year the Sporlan® division of Parker Hannifin has set the industry standard for the development and manufacture of leading edge HVACR components. Our outside technical sales force and application engineering team focuses on refrigeration system applications and troubleshooting for service technicians, distribution channel partners and original equipment manufacturers.
Parker® Expansion Valve With Internal Check Valve, 1/2 x 5/8 in Nominal, ODF Solder Connection, 5 ton Nominal Capacity, R-22 (Green) Refrigerant, External Equalizer, 1/4 in ODF Equalizer, 43 Element, 30 in Capillary Length, Type GA Charge, 450 psi, 100 Mesh Removable Strainer, Brass Body, Brass Seat, 3.66 in H
- Can be applied in bi-directional applications
- Can operate over widely varying operating conditions
- These valves contain internal check valves to allow reverse flow on heat pump applications
- This eliminates the need for an external check valve piped around the TEV for reverse flow
- The RC valve can be used on heat pump and air conditioning (Cooling only) applications
- Knife edge joint
- No adapter kit
- Stainless steel pin
- Stainless steel pushrod
