Dimensions | : | 10-1/4 in L x 10-1/4 in W x 7-3/8 in H |
Duct Size | : | 4 to 6 in |
Height | : | 7.13 in |
Length | : | 13 in |
Wall Opening | : | 10-1/2 in |
Width | : | 13 in |

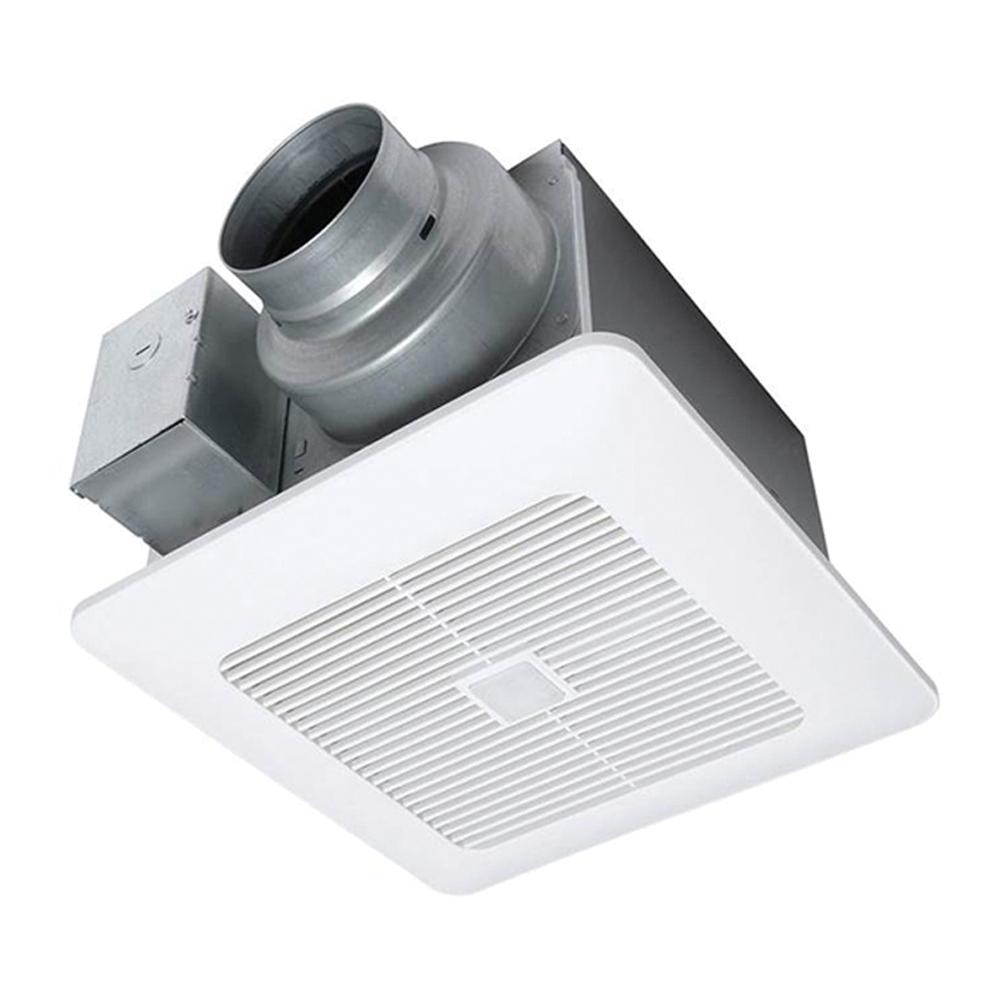

WhisperSense® DC™ precision spot ventilation fan with built-in dual sensor technology (motion and moisture) for automatic moisture and odor control. Features Pick-A-Flow™ speed selector switch to select required airflow (50-80-110 cfm) and ECM motor with SmartFlow® technology for optimum performance. Can be used to comply with the latest codes and standards. WhisperSense® DC is a precision spot ventilation fan that features built-in dual sensor technology (motion and moisture) that provides built-in redundancy for the ultimate in automatic moisture and odor control. WhisperSense® DC improves IAQ by effectively removing moist, polluted air from any room. A powerful, yet efficient ECM motor with SmartFlow® technology ensures optimum cfm output, regardless of a long or difficult duct run. WhisperSense® DC™ is designed to perform as rated. When the fan senses static pressure, its speed is automatically increased to ensure optimal cfm output. Built-in Pick-A-Flow™ speed selector provides the unique ability to select your required airflow (50-80-110 cfm) with the simple flip of a switch. Three ways the fan can function - motion on/motion off, motion on/humidity off, humidity on/humidity off. Variable humidity controls from 30 to 80% relative humidity (RH) adjustable delay timer from 30 s to 60 min. When you have a household or business to run, you don't want to have to replace little things like a vent fan. Panasonic fans use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse. The Flex-Z Fast™ installation bracket with articulating joints is ideal for positioning the fan exactly where you want it, in old or new construction. WhisperSense® DC incorporates an integrated dual 4 in or 6 in duct adapter to give you flexibility in duct layout and design. Panasonic ventilation fans are ENERGY STAR® certified, where guidelines exist. ENERGY STAR® vent fans meet strict parameters set by the US environmental protection agency (EPA). They provide better efficiency and comfort with less noise and feature high-performance motors and improved blade design, providing better performance and longer life. WhisperSense® DC was awarded 2018 most efficient. This mark recognizes WhisperSense® DC as delivering cutting edge energy efficiency along with the latest in technological innovation. It is an award that represents the best of those products that qualify for energy STAR®.
Panasonic WhisperSense® DC™ Precision Spot Ventilation Fan Housing, 120 V, 0.27 A, 60 Hz, Flush Mounting, 10-1/2 sq-in Mounting, 13 in Grille, 4 to 6 in Duct, ECM Motor, 110 cfm, 1382 rpm, 13 in Overall Length, 13 in Overall Width, 7.13 in Overall Height
- Precision spot ventilation fans ideal for use in the bathroom, laundry room, mud room, basement or garage
- Revolutionary ECM motor with SmartFlow® technology for optimum cfm output
- Pick-A-Flow™ speed selector (50 cfm, 80 cfm, 110 cfm) combined with SmartFlow® technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
- Dual sensor technology (motion and moisture) provides built-in redundancy for the ultimate in automatic moisture and odor control
- Flex-Z fast bracket provides flexible, fast and trouble-free installation, even from below the ceiling
