| Color | : | Gray |
| Connection Type | : | Solvent Weld |
| Drain Material | : | PVC |
| Finish | : | Polished |
| Grid Material | : | Stainless Steel |
| Nominal Size | : | 2 to 3 in |
| Overall Depth | : | 3.76 in |
| Overall Length | : | 5.9 in |
| Series | : | 130 Series |
| Shape | : | Square |
| Suitable For Use With | : | 2 or 3 in SCH 40 Drain Waste Vent Pipes and Tile Shower Bases |

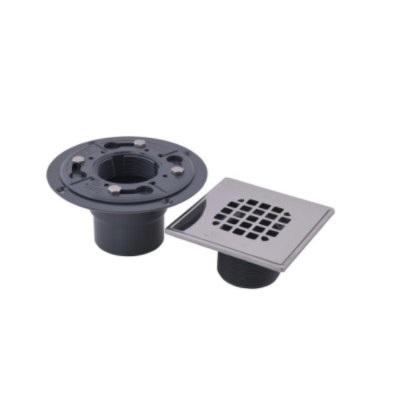

Oatey® 130 Series shower pan drains shall be used in residential and commercial applications when connecting to a DWV system. Using the countersunk holes, secure the flange base to the subfloor with an approved fastener. Shower pan drain shall have a solvent weld connection over 2 in SCH 40 DWV hub connection which conforms to ASTM D2665 (PVC) or D2661 (ABS). Shower drain base available in both PVC and ABS can be solvent welded over 2 in SCH 40 or solvent welded inside 3 in SCH 40 DWV. Strainer shall meet all necessary load and flow requirements for installations in shower areas. Base accepts 130 Series 1/4 turn test plug, which holds 40 ft of head pressure. Clamp collar ring fastens by use of hex bolts that thread into brass inserts and has improved weep holes and channels, which can be inverted to achieve an additional 1 in finished height.

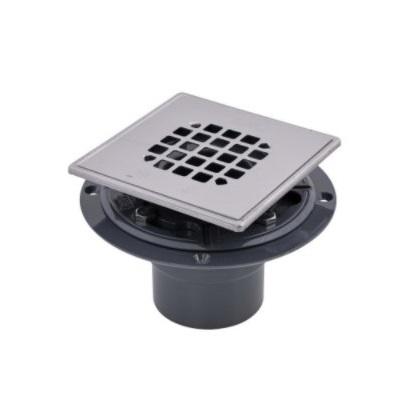

Oatey® Shower Drain, 130 Series, Square Shape, 2 to 3 in Nominal, Solvent Weld Connection, PVC Drain, Stainless Steel Grid, Gray, Finish: Polished, 5.9 in Overall Length, 3.76 in Overall Depth, For Use With: 2 or 3 in SCH 40 Drain Waste Vent Pipes and Tile Shower Bases
- Configurations come in square or round, snap-in or screw-in and polished stainless steel, brushed nickel or oil rubbed bronze
- They include a beauty tile ring that protects grout
- Reversible clamping collar adds 1 in of height and contains double weep holes and weep channels to optimize and ensure drainage
