| Additional Information | : | F1807 PEX (Brass) Tailpiece, Brass Valve Body, 10.19 in H x 11.73 in W Faceplate Dimensions |
| Color | : | White |
| Connection Type | : | PEX |
| Dimensions | : | 9.61 in H x 9.43 in W x 3.73 in D |
| Material | : | Polystyrene |
| Mounting Type | : | Bracket |
| Size | : | 3/4 in |

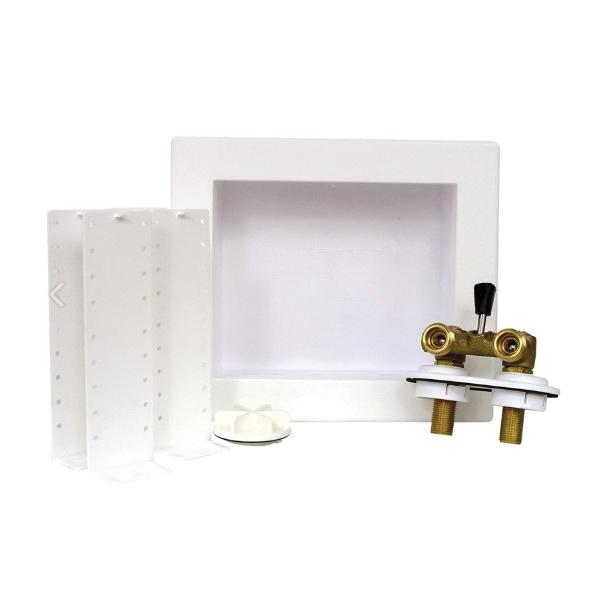

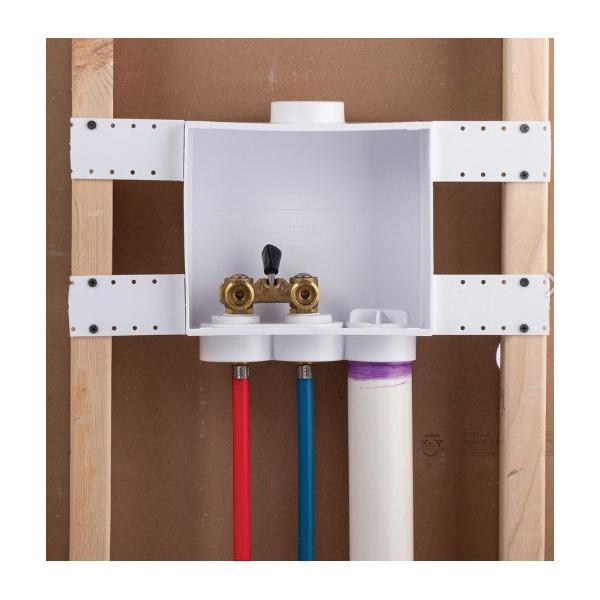

The Oatey® Quadtro® Washing Machine Outlet Box is made for commercial or residential applications where supply valves and waste drains are recessed into the wall. The proprietary lock and load valves enable left, right or center positioning of the drain pipe. This easy-to-install box includes all necessary support brackets to mount the water supply valves from the top or bottom. Oatey products have earned the trust of plumbing professionals for over 100 years.
Oatey® Quadtro® Washing Machine Outlet Box, 3/4 in, PEX Connection, Bracket Mounting, Polystyrene, White, 9.61 in H x 9.43 in W x 3.73 in D, Additional Information: F1807 PEX (Brass) Tailpiece, Brass Valve Body, 10.19 in H x 11.73 in W Faceplate Dimensions
- Box made of high impact polystyrene stands up to the roughest job site abuse
- Connects to PEX supply line with F1807 connection

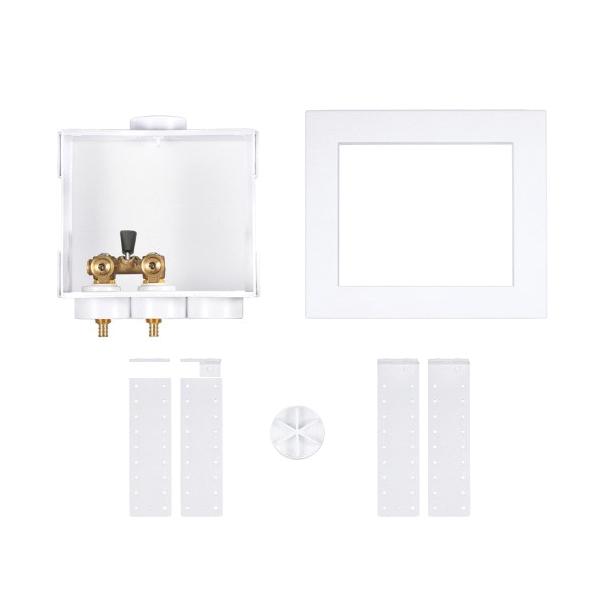

- 4 support brackets included for easy top or bottom valve mounting

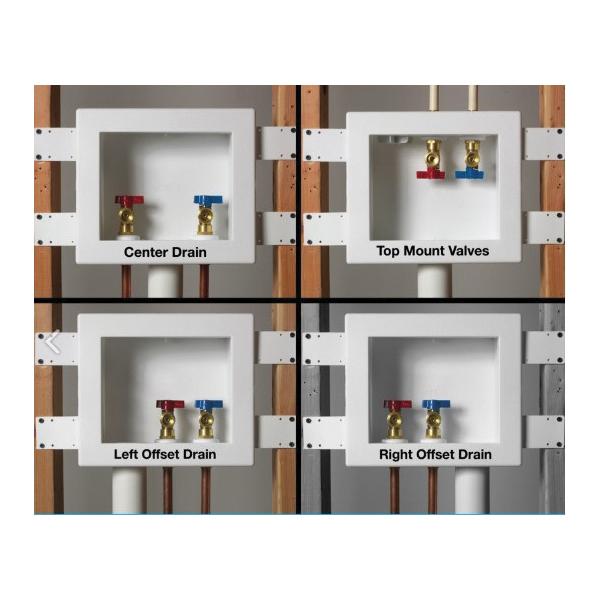

- Proprietary lock and load single lever valve enables left, right or center positioning of the drain pipe
- Four openings accommodate A single handle copper compatible valve, PVC or ABS Sch. 40 drain pipe for connection to your DWV system, and the option for top-down supply line installation
- Quadtro® residential and commercial washing machine outlet box
- 2 in. drain opening fits PVC or ABS Sch. 40 DWV pipe
- Easy-to-remove, tool-free 1/4-turn knockout
- Snap-on faceplate frame accommodates up to 1 in. drywall
