| Additional Information | : | 150 psi Air, 250 psi Water Pressure, Standard Pack |
| Color | : | White |
| Connection Type | : | PEX |
| Dimensions | : | 4.85 in H x 14.13 in W x 3.38 in D |
| Material | : | PVC |
| Size | : | 3/4 in |
| Temperature Rating | : | 250 deg F |

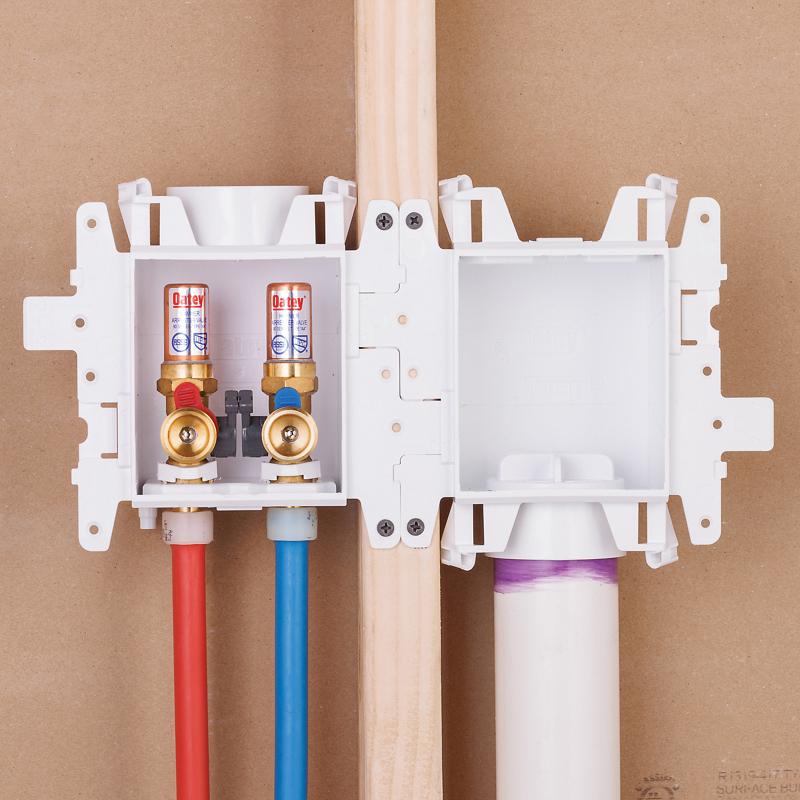

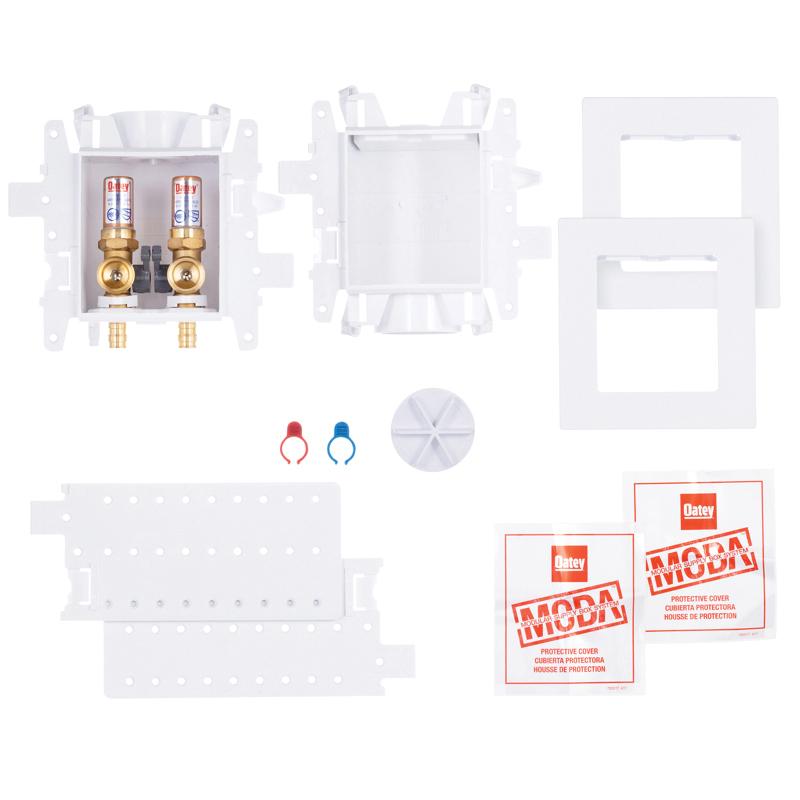

The MODA® supply box system is a compact, universal single box platform that combines extensive mounting configuration options with innovative engineering, simplifying outlet box installation for plumbing contractors. One universal faceplate is compatible with all box types and boxes easily snap to one another with common brackets. Available in standard and fire-rated options, MODA® washing machine supply boxes include two valves pre-installed in two PVC boxes with sturdy interlocking wing flanges that allow for on-stud and straddle-stud installations.
Oatey® MODA® Washing Machine Supply Box With Hammer Arrester Valve, 3/4 in, PEX Connection, PVC, White, 250 deg F, 4.85 in H x 14.13 in W x 3.38 in D, Additional Information: 150 psi Air, 250 psi Water Pressure, Standard Pack
- Connects to PEX supply line with F1960 cold expansion connection
- Includes (2) valves with 1/2 in PEX1960 tailpiece and a 2-piece valve design for easy repair or replacement without damaging drywall
- MODA® compact size washing machine outlet box
- 2 in drain opening fits PVC or ABS SCH 40 DWV pipe
- Advanced snap lock design allows for easy assembly or disassembly and connection to another MODA® box
- Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply/drain crossovers valves rated to 150 psi air and 250 psi water
- Valves rated to 150 psi air and 250 psi water
- Dual box design provides ideal options for stacked washer or dryers and space limited laundry rooms
- Includes an emergency drain port and tool-free quarter turn test plug with gasket to prevent knockouts falling down the drain pipe
- Durable PVC box construction stands up to the roughest jobsite conditions
