Ball Material | : | Brass |
Body Material | : | Brass |
Connection Type | : | Press |
Dimensions | : | 5.6 in L x 3.3 in W x 3.7 in H |
Domestic/Import | : | Import |
Handle Material | : | Aluminum |
Inlet to Outlet Length | : | 5-1/2 in |
Nominal Size | : | 1-1/4 in |
Number of Handles | : | 1 |
Operator Type | : | Reversible Handle |
Packing Material | : | Brass |
Port Type | : | Full |
Pressure Rating | : | 250 psi |
Seal Material | : | PTFE |
Seat Material | : | PTFE |
Series | : | H-x061 Series |
Softgoods Material | : | EPDM |
Stem Material | : | Brass |
Temperature Rating | : | 250 deg F |
Top to Inlet Center | : | 3 in |

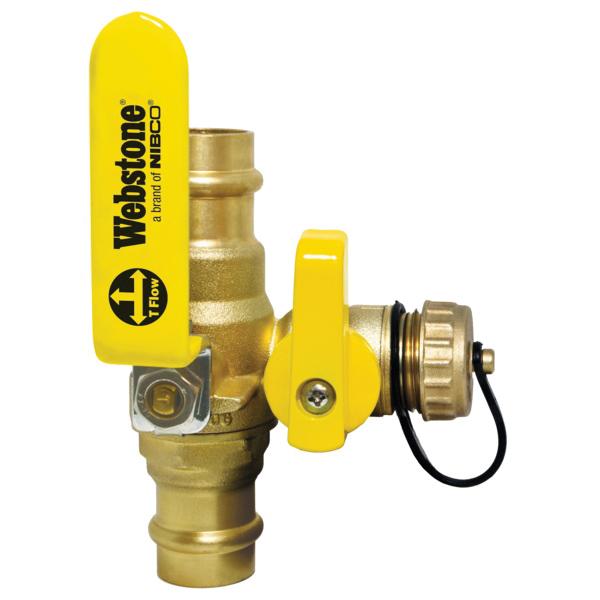

Pro-Pal Ball Drain, Full Port Forged Brass Ball Valve, w/ Hi-Flow Hose Drain, Reversible Handle, & Adjustable Packing Glands.
NIBCO® Ball Valve, Series: H-x061 Series, 1-1/4 in Nominal, Press Connection, Full Port, 250 psi, 5-1/2 in Inlet to Outlet Length, 3 in Top to Inlet Center, 1 Handles, Reversible Handle Operator, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, Brass Packing, Aluminum Handle, Brass Ball, EPDM Softgoods, 250 deg F, 5.6 in L x 3.3 in W x 3.7 in H, Domestic/Import: Import
- Eliminates Assembly Needed to Isolate and Drain Any Portion of a Piped System
- Reversible Handle for Added Versatility

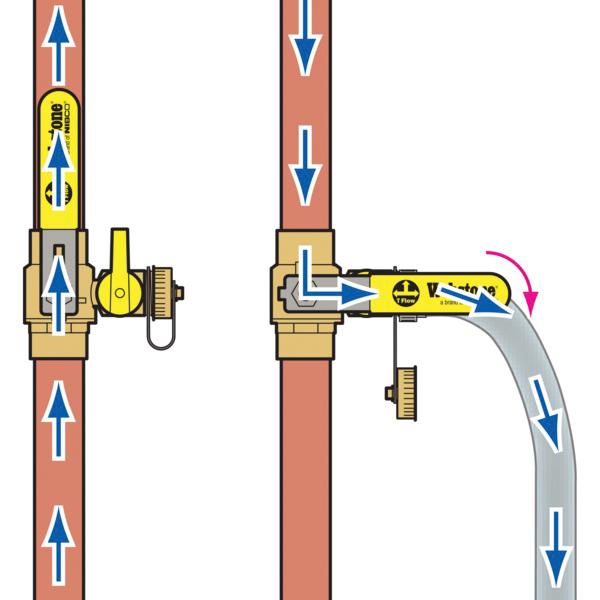

- Exclusive Adjustable Flow Path Allow for Draining From Either Side of the Ball
- Saves 27 Minutes

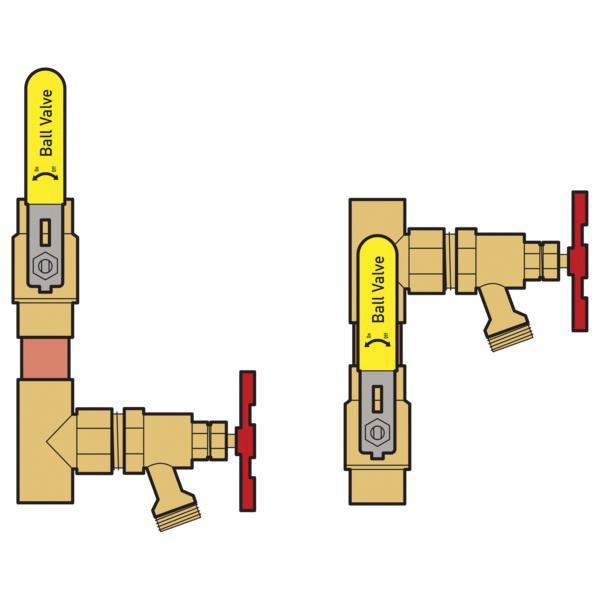

- Replaces 4 Components
- Eliminates 3 Leak Paths
