| Body Material | : | Brass |
| Connection Type | : | Solder |
| Dimensions | : | 3.49 in H |
| Nominal Size | : | 5/8 in |
| Operator Type | : | Handwheel |
| Pressure Rating | : | 700 psi |
| Temperature Rating | : | -40 to 300 deg F |

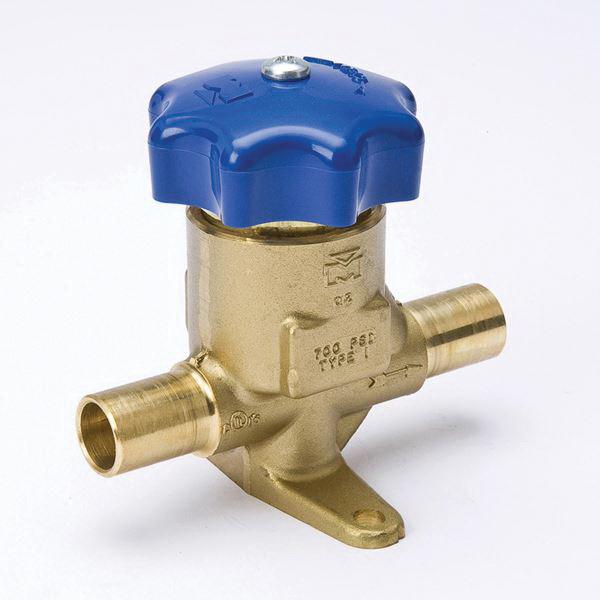

MUELLER INDUSTRIES Packless Diaphragm Valve, 5/8 in Nominal, Solder Connection, 700 psi, Brass Body, Handwheel Operator, -40 to 300 deg F, 3.49 in H
- Maximum abnormal pressure (MAP) With the flow in the direction of the arrow on the body 700 psi, against the direction of the arrow on the body 300 psi and burst pressure is 2500 psi
- Forged brass body with full size openings for maximum flow and minimum pressure drop
- Diaphragms for positive isolation
- Thermally stable hand wheel for operation in wide temperature ranges
- (2) stainless steel diaphragms and (1) phosphor bronze diaphragm for positive isolation
- For CFC, HCFC and HFC refrigerants and oils
