| Amperage Rating | : | 35/50 A |
| Barrel Size | : | 0.134 in ID x 0.248 in OD x 0.555 in L |
| Barrel Type | : | Serrated |
| Color | : | Yellow |
| Finish | : | Electro Tin-Plated |
| Insulation Material | : | Vinyl |
| Length | : | 1.047 in |
| Material | : | Copper Alloy |
| Package Type | : | Bag |
| Stud Size | : | #10 |
| Temperature Rating | : | 105 deg C |
| Thickness | : | 0.039 in |
| Voltage Rating | : | 600 V |
| Width | : | 0.354 in |
| Wire Size | : | 12 to 10 AWG |

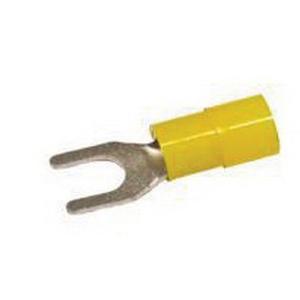

MORRIS Fork/Spade Terminal, 12 to 10 AWG Wire, 600 V, 35/50 A, 0.134 in ID x 0.248 in OD x 0.555 in L Barrel, Serrated Barrel, Vinyl Insulation, #10 Stud, Copper Alloy, Electro Tin-Plated, Yellow, 105 deg C, Bag, 1.047 in Length, 0.354 in Width, 0.039 in Thickness
- Fork/spade terminals are vinyl insulated
- Color-coded insulation for easy identification
- Manufactured from high-strength copper alloy
- Electro tin-plated for corrosion resistance
- Easy entry expanded insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
- Wire range stamped on the surface for easy interpretation
- Terminal barrel has butted seam
- Serrated barrel and flared insulation sleeve provides excellent contact and mechanical stress relief at insulation and barrel junction
