| BTU Rating | : | 47000 Btu/hr |
| CFM Rating | : | 730 cfm |
| Color | : | Gray/Green |
| Connection Size | : | 1-1/4 in |
| Connection Type | : | FNPT |
| Dimensions | : | 16-3/8 in H x 17-1/2 in W |
| Fan Size | : | 12 in |
| Finish | : | Powder-Coated |
| Flow Rate | : | 810 fpm, 785 fpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/12 hp |
| Heat Throw | : | 28 ft, 30 ft |
| Material | : | Steel |
| Mounting Height | : | 12 ft, 13 ft |
| Phase | : | 1 ph |
| Rotational Speed | : | 1550 rpm |
| Series | : | HSB Series |
| Voltage Rating | : | 115 V |

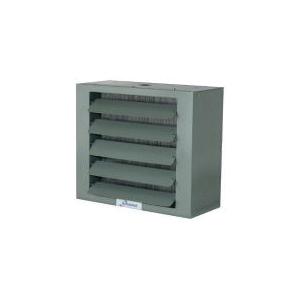

MODINE Steam/Hot Water Unit Heater, Series: HSB Series, 47000 Btu/hr, 115 V, 810 fpm, 785 fpm, 730 cfm CFM Rating, 1/12 hp HP Rating, 1 ph, 60 Hz, FNPT, 1-1/4 in, 12 in Fan Size, 1550 rpm Rotational Speed, 12 ft, 13 ft Mounting Height, 28 ft, 30 ft Heat Throw, Steel, Gray/Green, Powder-Coated, 16-3/8 in H x 17-1/2 in W
- HSB units have top and bottom supply and return connection
- This permits the units to be rotated 360 deg without piping change
- This permits the units to be installed in low clearance areas
- Units have a two piece casing for easy coil access
- Tapped holes for suspension by threaded rod
- Serpentine copper tube coil design has high-resistance to thermal shock, even under high steam pressures
- Absence of coil headers eliminates potential leaks and increases coil face area without increasing overall size of unit
- Coil designed for greater water carrying capacity with lower friction loss
- Standard coil type
- For use with greenhouses with low ceilings and are normally placed around the perimeter of the greenhouse to create a warm air blanket along the walls
