| Amperage Rating | : | 2.25 A |
| BTU Rating | : | 18500 Btu/hr |
| CFM Rating | : | 403 cfm, 424 cfm, 512 cfm, 600 cfm |
| Connection Type | : | Flared |
| EER Rating | : | 11.7 |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Mounting Type | : | Ceiling |
| Overall Height | : | 9-7/8 in |
| Overall Length | : | 28-7/8 in |
| Overall Width | : | 35-7/16 in |
| Phase | : | 1 ph |
| Power Rating | : | 1590 W |
| Refrigerant Type | : | R-454B |
| SEER Rating | : | 20.1 |
| Sound Level | : | 37 dBA |
| Temperature Rating | : | 66 to 90 deg F |
| Voltage Rating | : | 208/230 V |

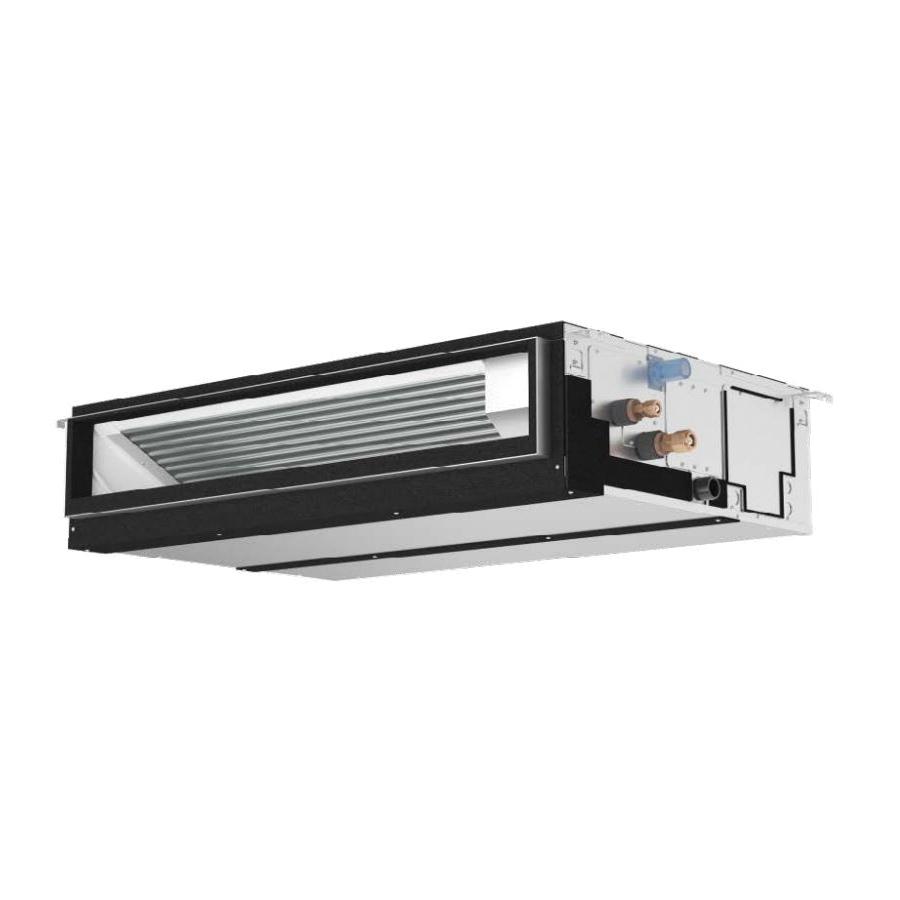

Mitsubishi Electric Trane® Indoor Horizontal-Ducted Unit, 208/230 V, 2.25 A, 1590 W, 60 Hz, 1 ph, 18500 Btu/hr, 403 cfm, 424 cfm, 512 cfm, 600 cfm, 11.7 EER Rating, 20.1 SEER, Flared Connection, R-454B Refrigerant, 37 dBA Sound Level, Ceiling Mounting, Finish: Galvanized, 66 to 90 deg F, 28-7/8 in Overall Length, 35-7/16 in Overall Width, 9-7/8 in Overall Height
- Auto fan speed mode
- Built-in condensate lift mechanism (up to 27-9/16")
- Multiple control options including: comfort app, third-party interfaces and both wired and wireless controllers
- Optional FB Series filter boxes for easy access and service
- Unobtrusive ceiling-concealed design for short-run ductwork
- Wide ranging external static pressure (0.14-0.60 in. WG)
