| Amperage Rating | : | 2.25 A |
| BTU Rating | : | 18000 Btu/hr |
| CFM Rating | : | 403 cfm, 424 cfm, 512 cfm, 600 cfm |
| Connection Type | : | Flared |
| EER Rating | : | 10.8 |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Mounting Type | : | Ceiling |
| Overall Height | : | 9-7/8 in |
| Overall Length | : | 28-7/8 in |
| Overall Width | : | 35-7/16 in |
| Phase | : | 1 ph |
| Power Rating | : | 121 W |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 19.8 |
| Sound Level | : | 44 dBA |
| Temperature Rating | : | -20 to 115 deg F |
| Voltage Rating | : | 208/230 V |

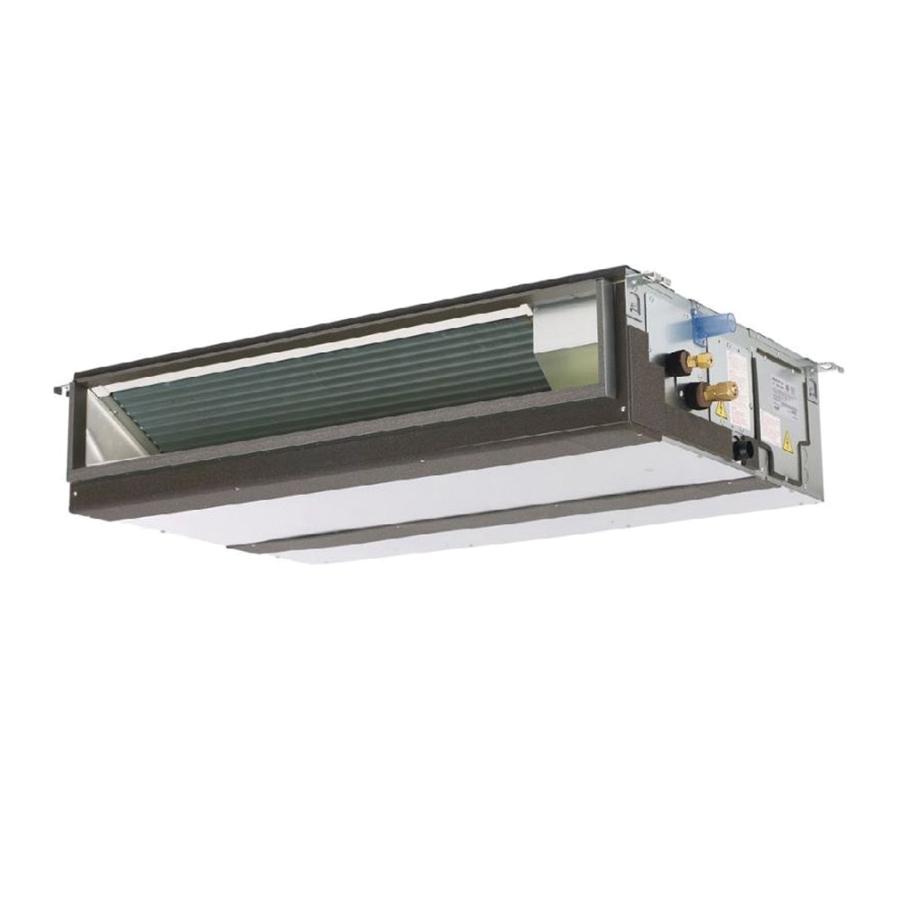

Mitsubishi Electric Trane® Indoor Mid Static Horizontal-Ducted Unit, 208/230 V, 2.25 A, 121 W, 60 Hz, 1 ph, 18000 Btu/hr, 403 cfm, 424 cfm, 512 cfm, 600 cfm, 10.8 EER Rating, 19.8 SEER, Flared Connection, R-410A Refrigerant, 44 dBA Sound Level, Ceiling Mounting, Finish: Galvanized, -20 to 115 deg F, 28-7/8 in Overall Length, 35-7/16 in Overall Width, 9-7/8 in Overall Height
- Unobtrusive ceiling-concealed design for short-run ductwork
- Wide ranging external static pressure (0.14-0.60 in. WG)
- Built-in condensate lift mechanism (up to 27-9/16")
- Auto fan speed mode
- Optional FB Series filter boxes for easy access and service
- Ideal for residential homes, retail shopping centers, larger classrooms, office complexes, conference rooms, ballrooms, fitness centers, and more
- Multiple control options available kumo cloud® smart device app for remote access, Third-party interface options, Wired or wireless controllers
