| Amperage Rating | : | 2.25 A |
| BTU Rating | : | 4700 to 21500 Btu/hr Heating, 5400 to 15000 Btu/hr Cooling |
| CFM Rating | : | 600 cfm |
| Connection Type | : | Flared |
| EER Rating | : | 13 |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| HSPF Rating | : | 10.8 |
| Model Number | : | PEAD |
| Overall Height | : | 9-7/8 in |
| Overall Length | : | 35-7/16 in |
| Overall Width | : | 28-7/8 in |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 19.6 |
| Sound Level | : | 37 dBA |
| Temperature Rating | : | 71 to 95 deg F Cooling, 70 to 80 deg F Heating |
| Voltage Rating | : | 208/230 V |

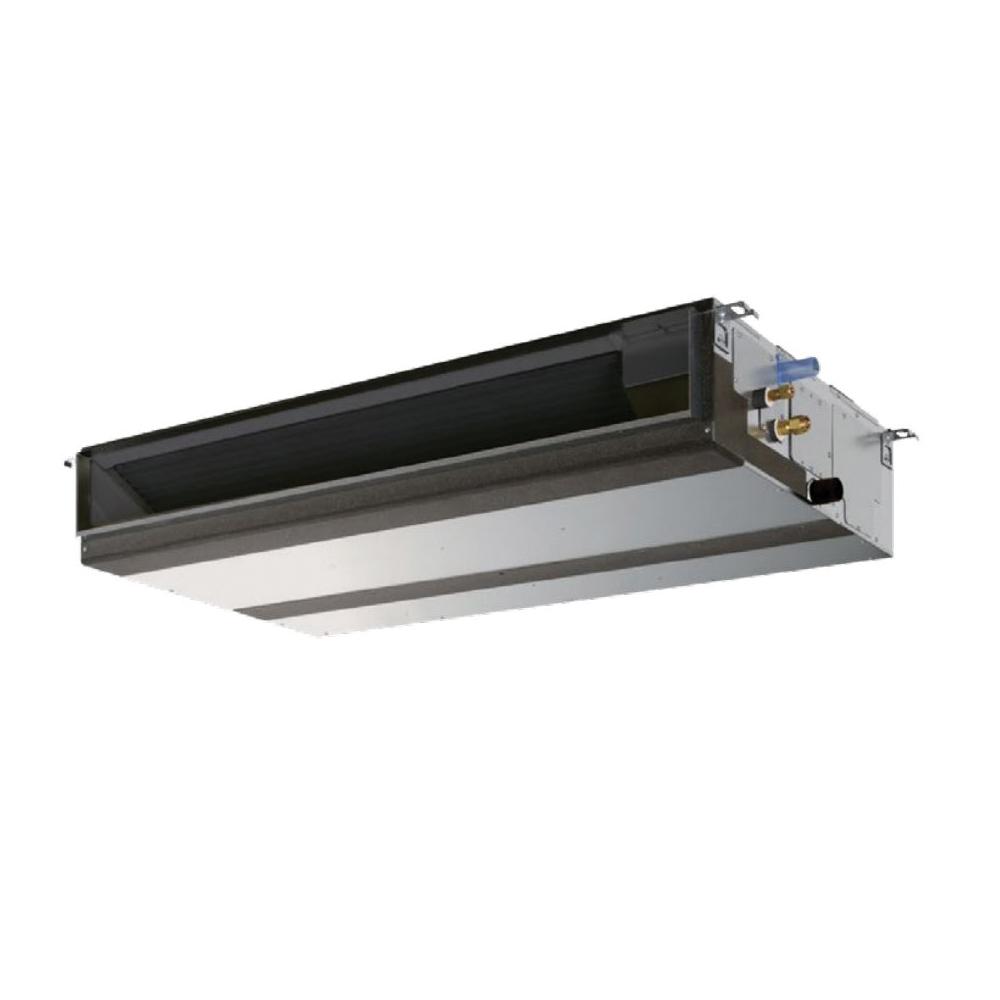

Mitsubishi Electric Trane® Mid Static Horizontal Ducted Indoor Unit, 208/230 V, 2.25 A, 60 Hz, 1 ph Phase, 4700 to 21500 Btu/hr Heating, 5400 to 15000 Btu/hr Cooling, 600 cfm, 13 EER Rating, 19.6 SEER, 10.8 HSPF, Flared Connection, R-410A Refrigerant, 37 dBA Sound Level, Finish: Galvanized, 71 to 95 deg F Cooling, 70 to 80 deg F Heating, 35-7/16 in Overall Length, 28-7/8 in Overall Width, 9-7/8 in Overall Height
- Unobtrusive ceiling-concealed design for short-run ductwork
- Wide ranging external static pressure (0.14-0.60 in. WG)
- Built-in condensate lift mechanism (up to 27-9/16")
- Auto fan speed mode
- Optional FB Series filter boxes for easy access and service
- Ideal for residential homes, retail shopping centers, larger classrooms, office complexes, conference rooms, ballrooms, fitness centers, and more
- Multiple control options availabl - kumo cloud® smart device app for remote access
- Third-party interface options
- Wired or wireless controllers
