| BTU Rating | : | 17200 to 43000 Btu/hr Cooling 16100 to 54000 Btu/hr Heating |
| CFM Rating | : | 740/810/885/955 cfm Cooling, 810/885/955/1,025 cfm Heating |
| Color | : | White |
| Connection Type | : | Flared |
| Drive Type | : | Inverter |
| EER Rating | : | 10.2 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 40 A |
| HSPF Rating | : | 8.6 |
| Mounting Type | : | Ceiling |
| Overall Height | : | 9-1/16 in |
| Overall Length | : | 26-3/4 in |
| Overall Width | : | 63 in |
| Phase | : | 1 ph |
| Power Rating | : | 4220 W Cooling, 5260 W Heating |
| Refrigerant Type | : | R-454B |
| SEER Rating | : | 19.6 |
| Series | : | PCA-AK-NL Series |
| Sound Level | : | 39/41/43/45 dBA Cooling, 39/41/43/45 dBA Heating |
| Temperature Rating | : | 66 to 90 deg F Cooling, 50 to 83 deg F Heating |
| Voltage Rating | : | 208/230 V |

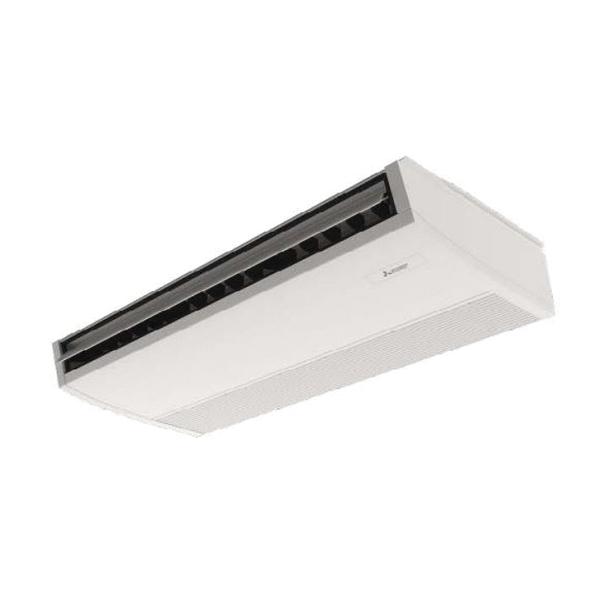

Mitsubishi Electric Trane® Indoor Mini-Split Cassette Unit, Series: PCA-AK-NL, 208/230 V, 4220 W Cooling, 5260 W Heating, 60 Hz, 1 ph, 17200 to 43000 Btu/hr Cooling 16100 to 54000 Btu/hr Heating, 740/810/885/955 cfm Cooling, 810/885/955/1,025 cfm Heating, 10.2 EER Rating, 19.6 SEER, 8.6 HSPF, Flared Connection, R-454B Refrigerant, 40 A Fuse Rating, Inverter Drive, 39/41/43/45 dBA Cooling, 39/41/43/45 dBA Heating Sound Level, Ceiling Mounting, White, 66 to 90 deg F Cooling, 50 to 83 deg F Heating, 26-3/4 in Overall Length, 63 in Overall Width, 9-1/16 in Overall Height
- Auto fan speed mode: Automatic adjustment of fan speed
- Easy-to-clean, washable filter
- Filter status indicator
- Ideal PCA Spaces: Ideal for larger retail stores, classrooms, and restaurants
- Knock-out for outside-air intake
- Light commercial: Units with this icon are suitable for light commercial applications such as small offices, restaurants, and retail.
- Multi-Airflow settings: Airflow settings for high and low ceiling applications
- Multiple control options, including the comfort app for remote access, third-party interfaces, and both wired and wireless controllers
- Suspends from ceiling for quick and easy installation
- Up and down swing-mode: An indoor unit with this capability can move air up and down throughout the room like an oscillating fan using the horizontal vanes.
