| Amperage Rating | : | 17.2/20 A |
| Compressor Type | : | Variable Speed Inverter Driven |
| Cooling BTU Rating | : | 18000 Btu/hr |
| Cooling CFM Rating | : | 1342 cfm |
| Cooling Operating Temperature | : | 14 to 115 deg F |
| Cooling Sound Level | : | 50 dBA |
| EER Rating | : | 12.7 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 20 A |
| HSPF Rating | : | 9.7, 7.5 |
| Heating BTU Rating | : | 22000 Btu/hr |
| Heating CFM Rating | : | 1458 cfm |
| Heating Operating Temperature | : | 5 to 65 deg F |
| Heating Sound Level | : | 54 dBA |
| Liquid Line Size | : | 1/4 in |
| Model Number | : | MXZ |
| Overall Height | : | 27-15/16 in |
| Overall Length | : | 13 in |
| Overall Width | : | 33-1/16 in |
| Phase | : | 1 ph |
| Power Rating | : | 1417 W Cooling, 1641 W Heating |
| SEER Rating | : | 20 |
| Suction Line Size | : | 3/8 in |
| Voltage Rating | : | 208/230 V |

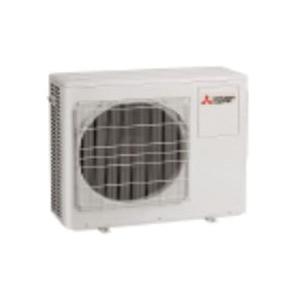

Mitsubishi Electric Trane® Multi-Split Heat Pump, 208/230 V, 17.2/20 A, 1417 W Cooling, 1641 W Heating, 60 Hz, 1 ph Phase, 22000 Btu/hr Heating, 18000 Btu/hr Cooling, 1458 cfm Heating CFM Rating, 1342 cfm Cooling CFM Rating, 12.7 EER Rating, 20 SEER, 9.7, 7.5 HSPF, Variable Speed Inverter Driven Compressor, 1/4 in Liquid Line, 3/8 in Suction Line, 20 A Fuse Rating, 54 dBA Heating Sound Level, 50 dBA Cooling Sound Level, 5 to 65 deg F Heating Operating Temperature, 14 to 115 deg F Cooling Operating Temperature, 13 in Overall Length, 33-1/16 in Overall Width, 27-15/16 in Overall Height
- Variable speed INVERTER-driven compressor
- M-NET connection optional through outdoor unit
- Quiet outdoor unit operation as low as 50 dB(A)
- High pressure switch for additional protection
- Base pan heater optional
