| Dimensions | : | 4-3/4 in H x 4-3/4 in W x 3/4 in D |
| Display Type | : | LCD Backlight |
| Humidity Rating | : | 30 to 90% RH, Non-Condensing |
| Material | : | ABS/PMMA/PC |
| Power Rating | : | 0.3 W |
| Temperature Rating | : | 32 to 104 deg F |
| Voltage Rating | : | 12 VDC |

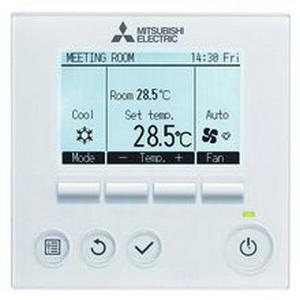

Mitsubishi Electric Wired Remote Controller, 12 VDC, 0.3 W Power, LCD Backlight Display, 32 to 104 deg F, 30 to 90% RH, Non-Condensing Humidity, ABS/PMMA/PC, Dimensions: 4-3/4 in H x 4-3/4 in W x 3/4 in D
- Wiring: connects using 2-wire, stranded, non-polar control wire to indoor unit connection terminal or control adapter (MAC-333IF for M-series) requires crossover wiring for indoor unit grouping
- Addressing: no addressing required
- Function lock out: prohibits all functions or all functions except on/off from the backlit MA controller
- Set P-series twinning function
- Fan speed setting for use with supplemental heating function (model dependent)
- Static pressure setting (model dependent)
- Special function rotation/backup (lead/lag for P-series)
- Set temperature range limit: from the backlit MA controller, the allowable set temperature range can be reduced for cool and heat modes
- Room temperature: displays room temperature sensed either at the indoor unit (default) or at the remote controller
- Auto-off timer: Turns indoor unit Off based on countdown time upto 4 hr in 30 min increments
- Simple timer: on and off time can be set once within 72 hr period in 1 hr increments
- Weekly timer: on/off/temperature setting up to eight times per day of the week in 1 min increments
- User functions allow user to set: On/off, operation modes cool, heat, dry, fan, set temperature, fan speed setting, airflow direction
- Supports both fahrenheit and celsius
- Features selectable multi-lingual LCD (English, Spanish and French)
- Controls group operation for upto 16 indoor units in a single group
