| Amperage Rating | : | 0.2 A/5 kA |
| BTU Rating | : | 24000 Btu/hr, 26000 Btu/hr |
| CFM Rating | : | 551 to 830 cfm |
| Coil Type | : | Type A |
| Configuration | : | Cased, Horizontal Right/Left, Vertical, Upflow/Downflow |
| Connection Size | : | 3/8 in, 5/8 in |
| Dimensions | : | 26.4 in H x 14.5 in W x 21.375 in D |
| Filter Size | : | #50 in |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 6.3/10 A |
| Material | : | Copper/Steel |
| Nominal Capacity | : | 2 ton |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Series | : | PAA Series |
| Suitable For Use With | : | P-Series, M/Nv-Series Systems, PUZ-A24NHA7, PUY-A24NHA7, PUZ-HA24NHA1 Outdoor Units |
| Temperature Rating | : | 60 deg F, 67 deg F, 70 deg F, 80 deg F |
| Tonnage | : | 2 ton |
| Voltage Rating | : | 208/230 V |
The intelli-HEAT™ dual fuel system is specifically designed to fit on top of an existing gas or propane furnace. With our innovative Intelligent switchover technology, intelli-HEAT™ automatically switches from electricity to fossil fuels only when outdoor conditions cause it to become more efficient and effective to do so. With intelli-HEAT™, you can be confident that your system is always operating at peak environmental and cost efficiency.

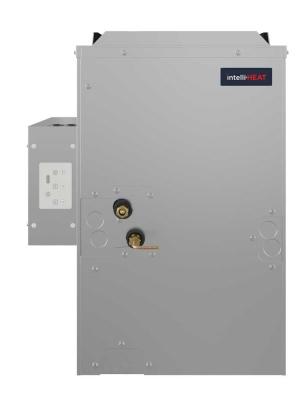

Mitsubishi Electric intelli-HEAT™ Medium Cabinet A-Coil Indoor Unit, Series: PAA Series, 2 ton Nominal Capacity, 24000 Btu/hr, 26000 Btu/hr, 208/230 V, 0.2 A/5 kA, 60 Hz, 1 ph, Cased, Horizontal Right/Left, Vertical, Upflow/Downflow, 551 to 830 cfm CFM Rating, 2 ton, R-410A, Type A Coil, 3/8 in, 5/8 in, #50 in Filter, 6.3/10 A Fuse, 60 deg F, 67 deg F, 70 deg F, 80 deg F, Copper/Steel, Galvanized, 26.4 in H x 14.5 in W x 21.375 in D, For Use With: P-Series, M/Nv-Series Systems, PUZ-A24NHA7, PUY-A24NHA7, PUZ-HA24NHA1 Outdoor Units
- Intelligent comfort control function (automatic switchover between heat pump and furnace)
- Compatible with any thermostatically controlled (24 VAC) natural gas or LP furnace
- Optimized heat exchanger design for increased efficiency and longevity
- Flared piping connection
- High quality drain pan material with high heat tolerance and low moisture absorption
- Multi-position installation - horizontal (left or right), vertical (up or down)
- Drain pans for all multi-position configurations are included for easy installation
- Oxygen-free copper coils
