| BTU Rating | : | 9000 Btu/hr Cooling, 12000 Btu/hr Heating |
| CFM Rating | : | 311 cfm Cooling, 325 cfm Heating |
| Connection Size | : | 1 in |
| Connection Type | : | Flared |
| EER Rating | : | 11.8 |
| Frequency Rating | : | 60 Hz |
| HSPF Rating | : | 12.2 |
| Model | : | MLZ |
| Mounting Type | : | Ceiling |
| Overall Height | : | 7-5/16 in |
| Overall Length | : | 14-3/16 in |
| Overall Width | : | 43-3/8 in |
| Phase | : | 1 ph |
| Power Rating | : | 760 W Cooling, 910 W Heating |
| Refrigerant Type | : | R-454B |
| SEER Rating | : | 20.9 |
| Size | : | 3/8 in Gas, 1/4 in Liquid |
| Sound Level | : | 38 dBA Cooling, 37 dBA Heating |
| Voltage Rating | : | 208/230 V |

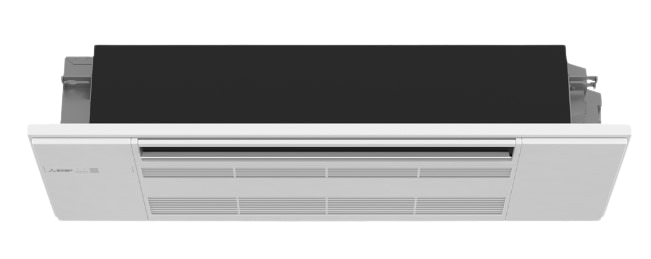

Mitsubishi Electric 1-Way Cassette Mini-Split Heat Pump System, 3/8 in Gas, 1/4 in Liquid, 208/230 V, 760 W Cooling, 910 W Heating, 60 Hz, 1 ph, 9000 Btu/hr Cooling, 12000 Btu/hr Heating, 311 cfm Cooling, 325 cfm Heating, 11.8 EER Rating, 20.9 SEER, 12.2 HSPF, Flared Connection, 1 in Connection, R-454B Refrigerant, 38 dBA Cooling, 37 dBA Heating Sound Level, Ceiling Mounting, 14-3/16 in Overall Length, 43-3/8 in Overall Width, 7-5/16 in Overall Height
- Adjustable fan speeds and vane directions
- Auto Vane Control: Outlet vanes can be moved left and right, and up and down using the remote controller. This improved air flow control feature solves the problem of drafts
- Built-in condensate lift mechanism (19.6"): Reduces the need for an additional pump to remove condensate water
- Econo Cool: Econo Cool temporarily and automatically adjusts the airflow based on heat exchanger temperature. The set temperature is increased slightly, which saves energy, while maintaining comfort
- Fits between 16" joists spacing
- Multiple control options including: Hand-held Remote Controller (provided with unit), comfort app, third-party interfaces and both wired and wireless controllers
- Serviceable from the bottom (electrical and flare connections)
- Stylish, square design panel
- Washable antibacterial and deodorizing filter
- Weekly Timer Function: Easily set desired temperatures and operation ON/OFF times to match lifestyle patterns. Reduce wasted energy consumption by using the timer to prevent forgetting to turn off the unit and eliminate temperature setting adjustments
- Wi-Fi enabled units pair with the Comfort app for complete control over temperature, fan speeds, modes, schedules, and more
