| Connection Type | : | NPT |
| Dimensions | : | 5-5/16 in H x 6-5/8 in W x 2-3/4 in D |
| Enclosure Type | : | NEMA 1 |
| Frequency Rating | : | 50/60 Hz |
| Humidity Rating | : | 85 % |
| Model | : | 752P-MT-24 |
| Pilot Duty Rating | : | 15 VA |
| Power Rating | : | 3 VA |
| Pressure Rating | : | 15 psi for Steam, 160 psi for Water |
| Reset Type | : | Automatic |
| Sensitivity | : | 20000 Ohm |
| Series | : | 752P Series |
| Temperature Rating | : | 32 to 120 deg F |
| Thread Size | : | 3/4 in |
| Voltage Rating | : | 24 VAC |

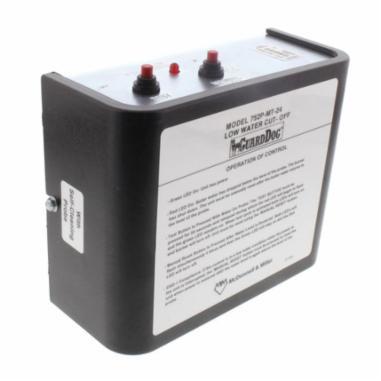

McDonnell & Miller Water Cut-Off With Standard Probe, 752P Series, Model: 752P-MT-24, 24 VAC, 50/60 Hz, 3 VA, Automatic Reset, 3/4 in Thread, NPT Connection, 15 psi for Steam, 160 psi for Water, NEMA 1 Enclosure, 15 VA Pilot Duty, 20000 Ohm Sensitivity, 85 % Humidity Rating, 32 to 120 deg F, 5-5/16 in H x 6-5/8 in W x 2-3/4 in D
- No lock out with loss of power if probe is in water
- Test button
- Green LED indicates power on
- Red LED indicating low water condition
