| Amperage Rating | : | 7.4 A |
| Connection Size | : | 1 in |
| Connection Type | : | MNPT |
| Dimensions | : | 3-3/8 x 3 x 8-7/16 in |
| Pressure Rating | : | 160 psi |
| Switch Type | : | SPDT |
| Temperature Rating | : | 32 to 250 deg F |

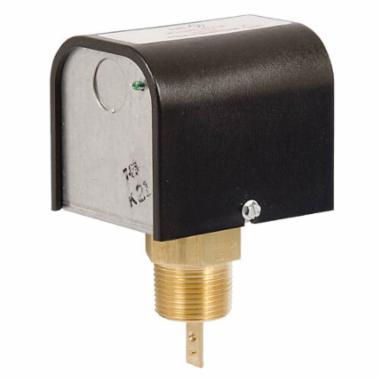

McDonnell & Miller Flow Switch, 7.4 A, 1 in Connection, MNPT Connection, SPDT Switch, 160 psi, 32 to 250 deg F, 3-3/8 x 3 x 8-7/16 in
- Universal design serves the widest variety of applications
- For starting or stopping electrically operated equipment such as signal lights, alarms, motors, automatic burners, metering devices and others
- Replacement for common flow switches from Johnson/Penn, Potter/Taco, Watts, Hydrolevel and other manufacturers
- Sensitivity adjusting screw makes flow adjustment easy
- Single pole, double throw snap switch
- EPDM O-ring sealed
- NEMA 1 enclosure
