| Amperage Rating | : | 7 A |
| Dimensions | : | 15.97 in L x 25 in H |
| Flow Rate | : | 20 gpm |
| Horsepower Rating | : | 3/4 hp |
| Inlet Size | : | 1 in |
| Number of Phases | : | 1 ph |
| Outlet Size | : | 1 in |
| Series | : | 17052R020PC1 Series |
| Voltage Rating | : | 120 VAC |
| Working Pressure Rating | : | 52 psi |
DuraMAC™ booster systems are designed to shut-offs when no flow is detected. Pump pressure boost should be added to current system pressure to determine total system pressure when boosted.

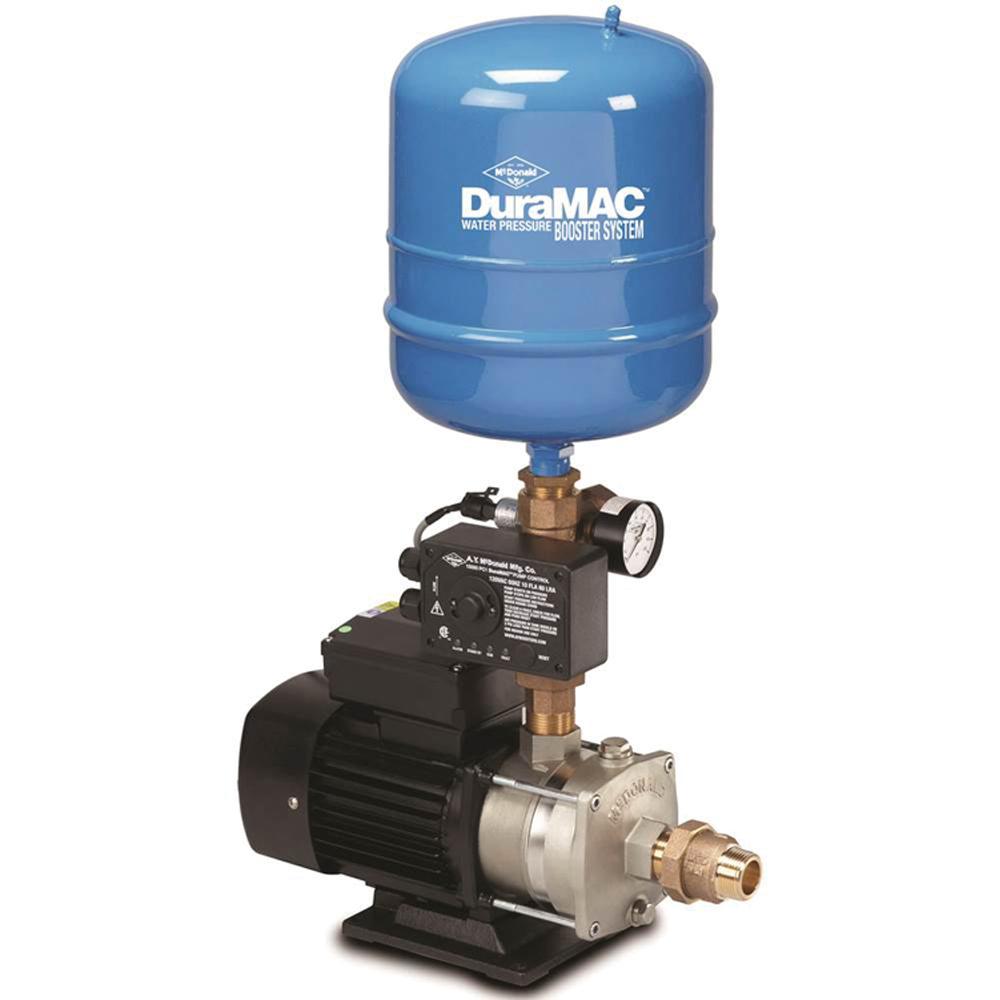

Mc.Donald® Booster Pump, Series: 17052R020PC1 Series, 120 VAC, 7 A, 3/4 hp Horsepower Rating, 1 ph ph, 20 gpm Flow Rate, 1 in Inlet, 1 in Outlet, 52 psi Working Pressure Rating, 15.97 in L x 25 in H
- Water pressure boosting system for residential, irrigation or light commercial use
- Easy set up installation
- Digital control with three modes of operation
- Durable stainless steel and lead-free brass connections, 2 gal pressure tank
- TEFC single phase motor for quiet operation
- Electronics separated and sealed from waterway
- Dry run protection
