| Body Material | : | Brass |
| Connection Type | : | FNPT x FNPT |
| Inlet to Outlet Length | : | 4.94 in |
| Nominal Size | : | 1-1/4 in |
| Pressure Rating | : | 150 psig |
| Series | : | 76001 Series |
| Softgoods Material | : | EPDM/PTFE |
| Top to Inlet Center | : | 2.94 in |
| Trim Material | : | Brass |
A.Y. McDonald Stop & Drain Ball Curb Stops maintain a low turning torque and bubble-tight 150 PSIG water pressure rating due to the PTFE coated brass ball that is supported by two blow-out proof EPDM seals. The end piece joint is sealed with an EPDM O-ring and thread locker. McDonald Stop & Drain Ball Curb Stops are available with a wide variety of end connections.

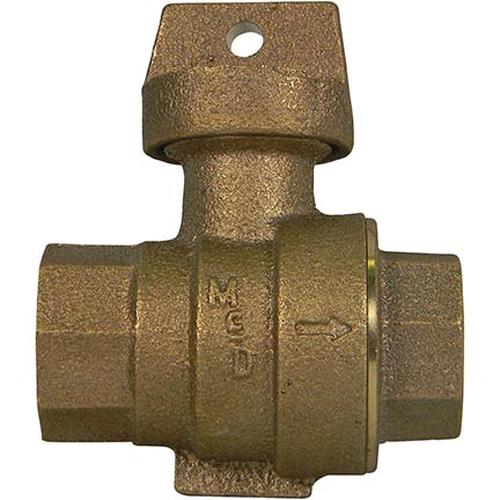

Mc.Donald® Stop and Drain Straight Ball Curb, 76001 Series, 1-1/4 in Nominal, FNPT x FNPT Connection, 150 psig, Brass Trim, EPDM/PTFE Softgoods, Brass Body, 2.94 in Top to Inlet Center, 4.94 in Inlet to Outlet Length
