| Body Material | : | Bronze |
| Connection Type | : | FNPT |
| End Type | : | Plug |
| Hex Size | : | 2-3/4 in |
| Media | : | Gas |
| Model | : | 10596 |
| Nominal Pipe Size | : | 2 in |
| Operator Type | : | Manual |
| Pressure Class | : | 110 lb |
| Pressure Rating | : | 2 psig |
| Temperature Rating | : | 32 to 125 deg F |
| Top to Inlet Center | : | 2.54 in |

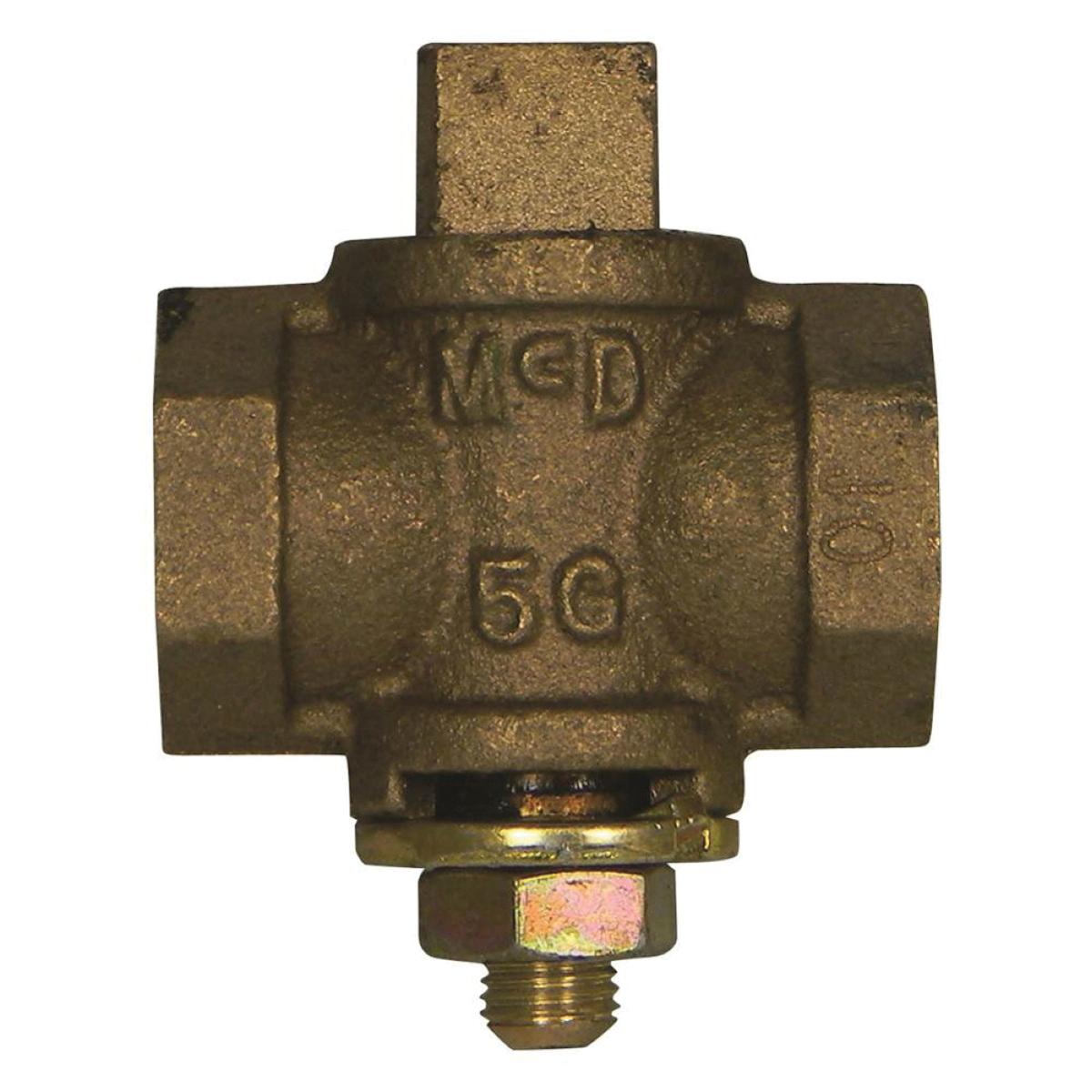

Bronze body and plug manually operated low pressure natural or propane gas valve for use indoors on house piping system between the meter outlet and the inlet connection of the gas appliance at ambient temperatures of 32 to 125 deg F.
Mc.Donald® Flat Head Low Pressure Gas Valve, Model: 10596, 2 in Nominal Pipe, FNPT Connection, Plug End, 2 psig, Pressure Class: 110 lb, 2-3/4 in Hex, Gas Media, Manual Operator, 2.54 in Top to Inlet Center, Bronze Body, 32 to 125 deg F
