| BTU Rating | : | 36000 Btu/hr |
| CFM Rating | : | 1000 to 1200 cfm |
| Coil Rating | : | 20 FPI, 3.43 sq-ft |
| Coil Type | : | Cased A |
| Configuration | : | Upflow, Vertical |
| Connection Size | : | 3/8 in, 3/4 in |
| Dimensions | : | 20-3/4 in H x 17-1/2 in W x 19-1/2 in D |
| Drain Pan Size | : | 19-1/2 in H x 16 in W |
| Model | : | C7BAM03036C-B |
| Orifice Size | : | 0.067 in |
| Refrigerant Type | : | R-410A |
| Series | : | C7 Series |
| Tonnage | : | 2.5 to 3 ton |

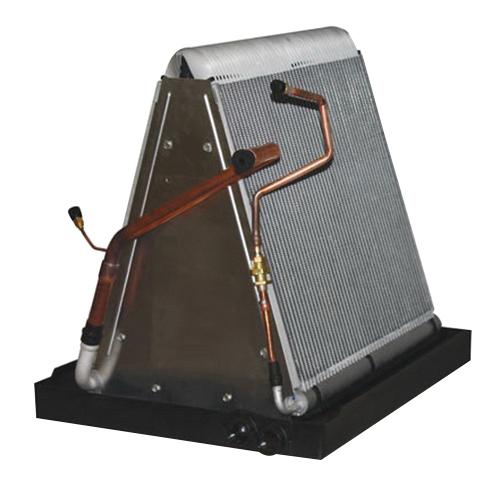

MAYTAG® Evaporator Coil, Series: C7 Series, Model: C7BAM03036C-B, 36000 Btu/hr, Upflow, Vertical, 19-1/2 in H x 16 in W Drain Pan Size, 1000 to 1200 cfm CFM Rating, 2.5 to 3 ton, R-410A, 20 FPI, 3.43 sq-ft Coil Rating, Cased A Coil, 3/8 in, 3/4 in, 0.067 in Orifice, 20-3/4 in H x 17-1/2 in W x 19-1/2 in D
- Micro channel
- 17-1/2 in W cabinet
- 17-1/2 in H liquid line, 15-1/2 in H suction line
- 19-1/2 in H x 16 in W drain pan
- B-cabinet
