| Amperage Rating | : | 60 A |
| Enclosure Type | : | NEMA 3R |
| Fusible/Non-Fusible | : | Non-Fusible |
| Housing Color | : | Gray |
| Housing Finish | : | Powder-Coated |
| Housing Material | : | Steel |
| Overall Depth | : | 3 in |
| Overall Length | : | 5 in |
| Overall Width | : | 8-3/8 in |
| Voltage Rating | : | 240 V |

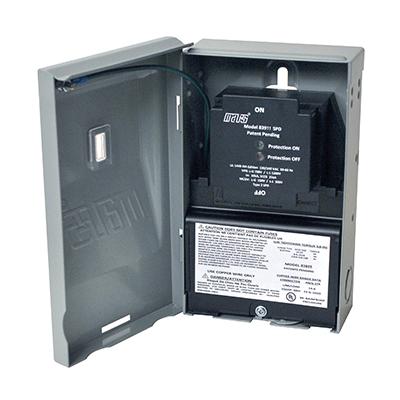

The patent pending MARS surge protection disconnect features a pull-out with integrated surge protection. Because there is no separate module, it is as easy to install as a traditional disconnect. LEDs indicating the protection status of the SPD pull-out are visible through a window in the enclosure.
Mars® Side Open Disconnect, Non-Fusible, 240 V, 60 A, NEMA 3R Enclosure, Steel Housing, Powder-Coated Housing, Gray Housing, 5 in Overall Length, 8-3/8 in Overall Width, 3 in Overall Depth

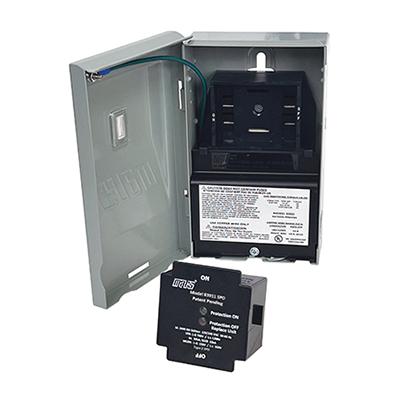

- Features a pull-out with integrated surge protection
- 60 Amp Non-Fused
- Easy as Wiring a Standard Disconnect

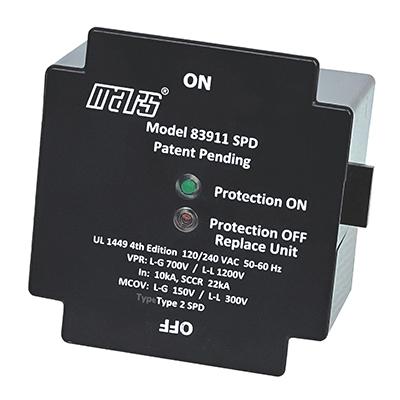

- External Green & Red LED Status Indicators visible thru a window

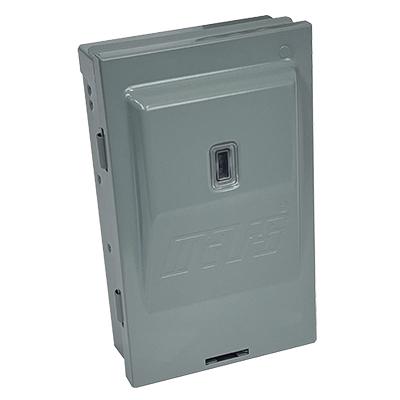

- NEMA 3R Rainproof Enclosure
- Patent Pending
- UL Listed, UL 1449 4th Edition
