| Contact Rating | : | Terminal 1 - 3: Full Load: 13 A and 60 A Locked Rotor at 120 VAC, 10 A and 45 A Locked Rotor at 240 VAC, Resistive: 25 A at 120/240 VAC, 15 A at 277 VAC, Terminal 1 - 2: Full Load: 5.8 A and 34.8 A Locked Rotor at 120 VAC, 2.9 A and 17.4 A Locked Rotor at 240 VAC, Resistive: 25 A at 120/240 VAC, 15 A at 277 VAC, 125 VA at 120/240 VAC Pilot Duty |
| Mounting Type | : | Tube |
| Switch Type | : | SPST |
| Temperature Settings | : | 20 deg F Open, 60 deg F Close |

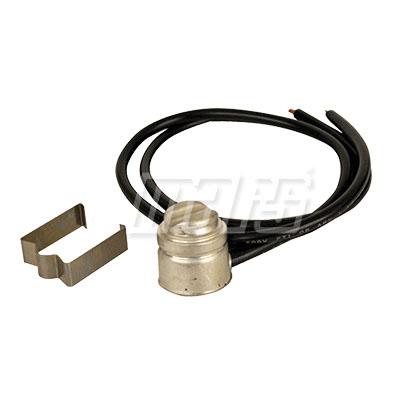

Mars® Thermostat, SPST Switch, Terminal 1 - 3: Full Load: 13 A and 60 A Locked Rotor at 120 VAC, 10 A and 45 A Locked Rotor at 240 VAC, Resistive: 25 A at 120/240 VAC, 15 A at 277 VAC, Terminal 1 - 2: Full Load: 5.8 A and 34.8 A Locked Rotor at 120 VAC, 2.9 A and 17.4 A Locked Rotor at 240 VAC, Resistive: 25 A at 120/240 VAC, 15 A at 277 VAC, 125 VA at 120/240 VAC Pilot Duty Contact, 20 deg F Open, 60 deg F Close Settings, Tube Mounting
- Long lead wires supplied to satisfy most requirements
- 1 in discs fully encapsulated for trouble-free use
- Mounts directly on coil tube or surface for maximum temperature response
- 36 in lead connector
- 5/8 in tube mounting
