| Contact Rating | : | Terminal 1 - 3: Full Load: 13 A and 60 A Locked Rotor at 120 VAC, 10 A and 45 A Locked Rotor at 240 VAC, Resistive: 25 A at 120/240 VAC, 15 A at 277 VAC, Terminal 1 - 2: Full Load: 5.8 A and 34.8 A Locked Rotor at 120 VAC, 2.9 A and 17.4 A Locked Rotor at 240 VAC, Resistive: 25 A at 120/240 VAC, 15 A at 277 VAC, 125 VA at 120/240 VAC Pilot Duty |
| Switch Type | : | SPDT |
| Temperature Settings | : | 65 deg F Open, 20 deg F Close |
| Voltage Rating | : | 120/240/277 VAC |

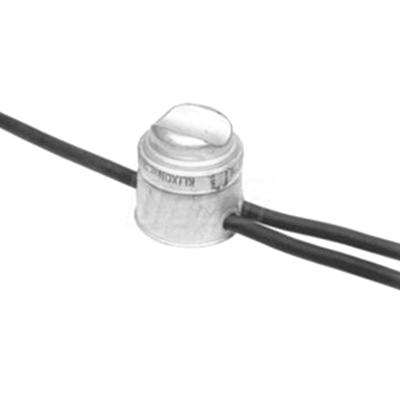

Mars® Defrost Thermostat, 120/240/277 VAC, SPDT Switch, Terminal 1 - 3: Full Load: 13 A and 60 A Locked Rotor at 120 VAC, 10 A and 45 A Locked Rotor at 240 VAC, Resistive: 25 A at 120/240 VAC, 15 A at 277 VAC, Terminal 1 - 2: Full Load: 5.8 A and 34.8 A Locked Rotor at 120 VAC, 2.9 A and 17.4 A Locked Rotor at 240 VAC, Resistive: 25 A at 120/240 VAC, 15 A at 277 VAC, 125 VA at 120/240 VAC Pilot Duty Contact, 65 deg F Open, 20 deg F Close Settings
- Long lead wires supplied to satisfy most requirements
- 1 in discs fully encapsulated for trouble-free use
- Mounts directly on coil tube or surface for maximum temperature response
- 20 in leads
- 5/8 in tube mounting
